Industrial electrical systems require stable switching performance, safe motor operation, and long-term durability. The CJX2 AC Contactor is one of the most widely used low-voltage electrical control components for managing motors, pumps, compressors, HVAC systems, and automation equipment. This article explains how a CJX2 AC Contactor works, why it is important for industrial applications, how to choose the correct model, and how businesses can reduce downtime and electrical failures through proper installation and maintenance.

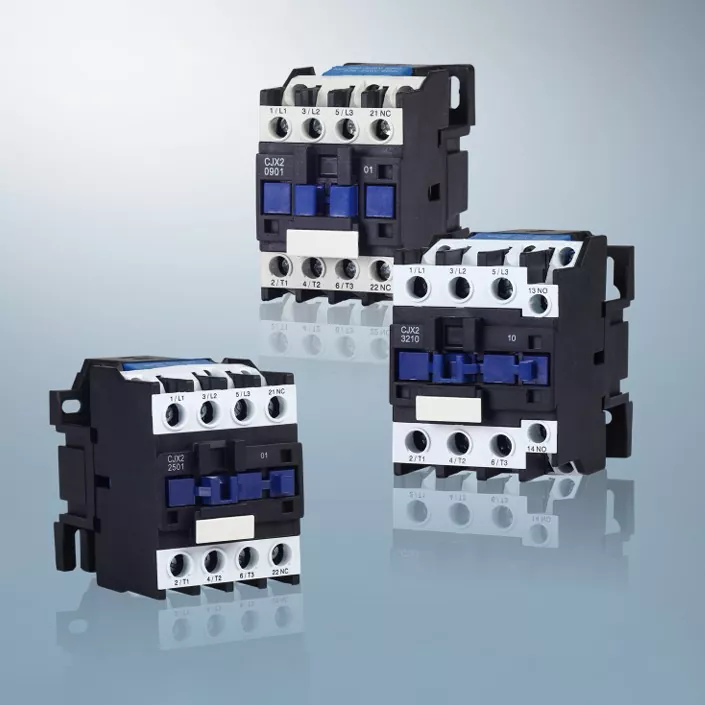

A CJX2 AC Contactor is an electromagnetic switching device designed for frequent starting and controlling of AC motors and electrical loads. It is commonly installed in industrial automation systems, distribution panels, machine control cabinets, and commercial electrical systems.
The device uses an electromagnetic coil to open or close electrical contacts, allowing safe remote control of high-current circuits. Compared with manual switches, CJX2 contactors provide faster operation, improved reliability, and better protection for electrical equipment.
Manufacturers and electrical contractors often select CJX2 contactors because they are compact, efficient, and compatible with various overload relays and auxiliary accessories.
The working principle of a CJX2 AC Contactor is based on electromagnetic attraction. When voltage is applied to the coil, the magnetic field pulls the movable core inward, causing the main contacts to close. This allows electrical current to flow through the connected load.
When the control voltage is removed, the magnetic force disappears, and the spring mechanism returns the contacts to their original position, disconnecting the circuit.
This process enables efficient remote switching and automation control in industrial systems where frequent operation is required.
Understanding the internal structure helps users maintain performance and reduce unexpected failures.
| Component | Function |
|---|---|
| Electromagnetic Coil | Generates magnetic force to operate the contactor. |
| Main Contacts | Carry the primary electrical load current. |
| Auxiliary Contacts | Used for signaling and interlocking circuits. |
| Arc Extinguishing Chamber | Reduces electrical arcing during switching. |
| Spring Mechanism | Returns contacts to the open position when de-energized. |
CJX2 AC Contactors are widely used across different industries because they support reliable switching performance under demanding operating conditions.
Used for starting and stopping industrial motors in manufacturing lines and processing equipment.
Controls compressors, fans, pumps, and air-conditioning units in commercial buildings.
Installed in electrical distribution cabinets for load switching and system protection.
Supports PLC-controlled automation systems and industrial machinery.
Industrial users prefer CJX2 series contactors because they provide stable electrical performance and help reduce operational risks.
For factories and contractors, these advantages help reduce maintenance costs and improve operational efficiency.
Selecting the correct contactor is essential for safety and equipment reliability. Choosing the wrong current rating or coil voltage may lead to overheating, unstable operation, or equipment damage.
For example, high-temperature industrial environments may require enhanced heat resistance and improved ventilation inside control cabinets.
Companies like Junray Electrical provide multiple CJX2 model options suitable for different industrial requirements, helping customers select reliable low-voltage control solutions for their applications.
Proper installation and regular inspection can significantly extend the service life of a CJX2 AC Contactor.
| Maintenance Item | Recommended Action |
|---|---|
| Wiring Inspection | Check terminal tightness regularly. |
| Contact Wear | Inspect for burn marks or excessive wear. |
| Dust Removal | Keep internal components clean and dry. |
| Coil Voltage Check | Ensure stable input voltage. |
| Temperature Monitoring | Avoid overheating during continuous operation. |
Routine maintenance helps prevent unexpected shutdowns and improves the overall safety of industrial electrical systems.
| Model | Rated Current | Typical Application |
|---|---|---|
| CJX2-0910 | 9A | Small motors and pumps |
| CJX2-1210 | 12A | Fans and compressors |
| CJX2-1810 | 18A | Industrial machinery |
| CJX2-2510 | 25A | Heavy-duty equipment |
| CJX2-3210 | 32A | Large industrial motors |
Yes. Although mainly designed for industrial systems, some models are suitable for residential HVAC systems and water pump control applications.
Common causes include overheating, incorrect voltage, excessive switching frequency, dust contamination, and worn contacts.
Inspection intervals depend on operating conditions. In heavy industrial environments, monthly inspections are recommended.
Yes. Most CJX2 series contactors are designed to integrate with thermal overload relays for motor protection.
Incorrect coil voltage can prevent proper operation or damage the contactor coil, leading to unstable system performance.
The CJX2 AC Contactor plays a critical role in industrial electrical control systems by enabling safe, efficient, and reliable switching operations. From motor control to automation equipment, these contactors help businesses improve operational stability and reduce maintenance risks.
Choosing the correct contactor model, installing it properly, and performing regular maintenance can significantly improve equipment lifespan and production efficiency.
As a professional manufacturer and supplier of low-voltage electrical products, Junray Electrical offers dependable CJX2 AC Contactor solutions for global industrial applications. If you are looking for high-quality electrical control components with stable performance and competitive pricing, contact us today to discuss your project requirements and receive professional support from our experienced team.
-
