SVG High Voltage Prefabricated Cabin

In the current construction of large-scale photovoltaic power stations, the traditional power distribution mode has many problems: building a distribution room requires several months of civil construction time, which is extremely time-consuming and seriously affects the rapid implementation of photovoltaic projects; inverters, transformers, high and low voltage cabinets and other equipment need to be purchased, transported and installed separately, resulting in a cumbersome process, not only increasing labor and transportation costs, but also prone to problems of poor equipment connection; the construction cost is high and occupies a large amount of land resources, further increasing project investment. SVG High Voltage Prefabricated Cabin precisely addresses these core pain points, with an integrated and pre-assembled design, providing an efficient, worry-free and low-cost power distribution solution for large-scale photovoltaic power stations, helping photovoltaic projects to be put into production quickly.

Product Core Advantages

SVG High Voltage Prefabricated Cabin focuses on the core requirements of large-scale photovoltaic power stations, with "integration, speed, cost reduction, and high reliability" as its core, creating a differentiated competitive advantage. Each advantage can effectively solve the actual problems encountered in project construction, significantly improving the construction efficiency and reducing the investment cost.

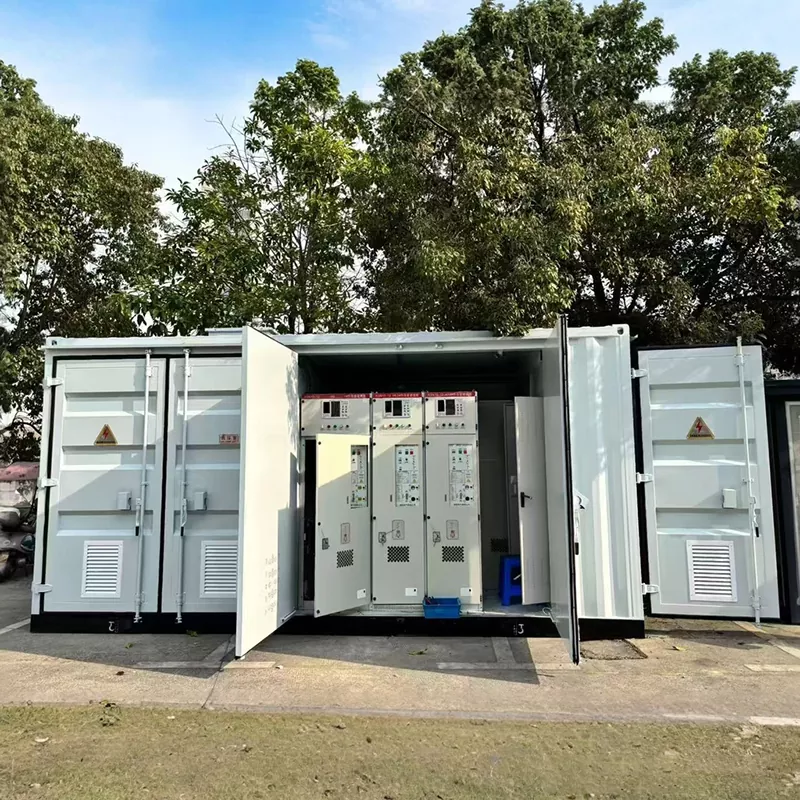

Full equipment integration, one cabin handles everything: All the inverters, transformers, high and low voltage cabinets, and monitoring equipment required for large-scale photovoltaic power stations are integrated in a prefabricated cabin. There is no need to separately purchase and install multiple devices. The equipment connection is smoother, which not only simplifies the installation process but also significantly reduces equipment procurement, transportation, and installation costs, making the photovoltaic power distribution deployment more convenient.

Full pre-installation and commissioning, rapid deployment and shortens construction time: All equipment is pre-installed and commissioned in the factory. After ensuring that the equipment operating parameters meet the standards and the connection is correct, it is then transported to the project site. On-site, only the wiring needs to be connected, and it can be put into use within a few days. Compared to the traditional construction period of several months for a distribution room, the construction time is significantly shortened, helping the photovoltaic project to be put into production and take effect quickly.

No need to build a distribution room, significantly saving costs: No need to build a separate distribution room. All the costs related to the construction of the distribution room are saved. There is no need to spend a large amount of money on building a distribution room. This not only saves a lot of construction costs but also avoids the long waiting time for the construction of the distribution room. Further compresses the project construction period and investment, and improves the project cost performance.High reliability and low failures, suitable for large-scale power stations: All equipment is uniformly debugged in the factory to avoid potential faults caused by improper installation and connection at the site. The operation is more stable, and the failure rate is significantly reduced. It can long-term adapt to the continuous operation requirements of large-scale photovoltaic power stations, reducing the subsequent maintenance costs and ensuring stable power generation of the photovoltaic power station.

Technical Specifications

Design Advantages

Junray Electrical takes into account the outdoor operation characteristics of large-scale photovoltaic power stations. Every design is balanced between reliability and practicality, providing comprehensive guarantees for the long-term stable operation of the equipment.

The fully integrated equipment design has a reasonable internal layout, smooth equipment connection, and is convenient for later maintenance;

The full pre-installation and commissioning ensure that each process in the factory is strictly controlled, ensuring that the equipment meets the standards upon leaving the factory;

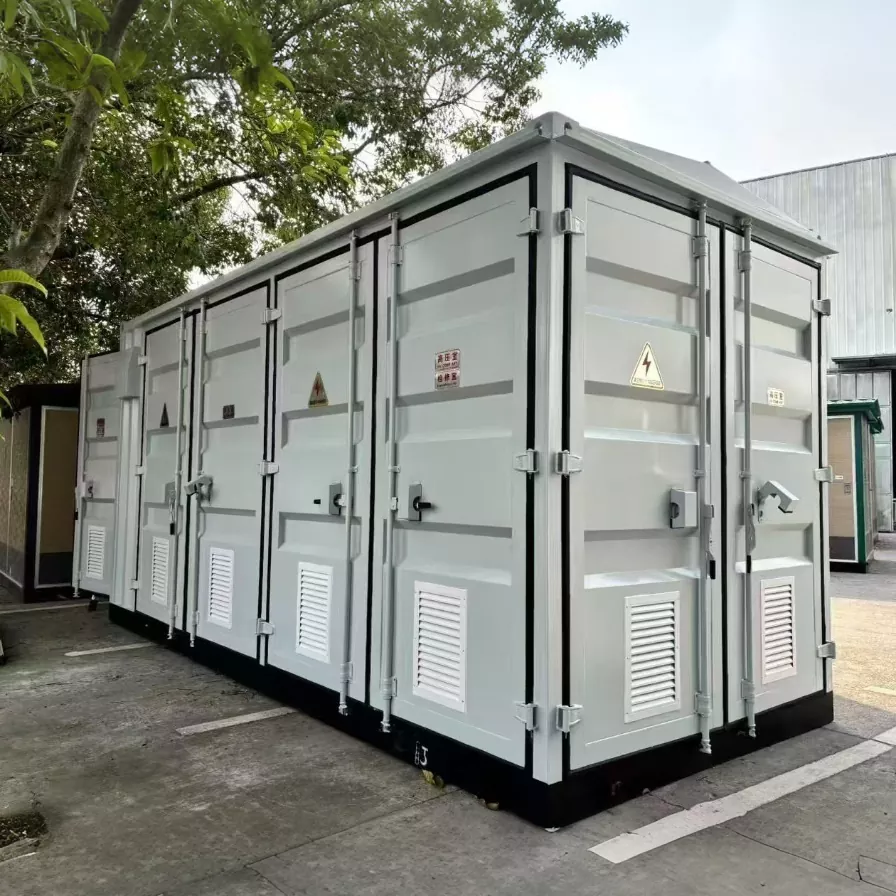

The outdoor high protection design has waterproof, dustproof, and anti-salt fog properties, capable of adapting to the complex environment of outdoor photovoltaic power stations and avoiding erosion by water vapor, dust, and salt fog inside the equipment;

The outdoor-specific anti-aging powder coating treatment is resistant to sun exposure and rain, and will not rust or age during long-term outdoor use, prolonging the equipment's service life;

The SVG High Voltage Prefabricated Cabin adopts a dedicated cooling and ventilation system, which can quickly remove the heat generated by the equipment operation, avoiding component aging due to overheating, and ensuring the stable operation of the equipment.

Application Scenarios

With the advantages of integration, rapid deployment and high reliability, SVG High Voltage Prefabricated Cabin is widely applicable to various large-scale photovoltaic-related projects, becoming the core equipment for the construction of large-scale photovoltaic power stations.

Large-scale ground photovoltaic scenarios, suitable for large-scale ground photovoltaic power stations, rapid deployment, cost savings, ensuring stable power generation of the power station;

Large photovoltaic project scenarios, suitable for various large-scale photovoltaic projects, significantly shortening the construction period, helping the project to be put into production quickly;

Energy storage photovoltaic scenarios, suitable for the demand of energy storage photovoltaic integrated cabins, integrated design to adapt to the energy storage system, ensuring the coordinated operation of energy storage and photovoltaic;

Large park photovoltaic scenarios, suitable for large park photovoltaic power distribution, saving park space, reducing construction costs, helping the park achieve clean energy power supply.

Maintenance Recommendations

1. Regular Cleaning and Maintenance: Clean the surface of the SVG High Voltage Prefabricated Cabin monthly to remove dust and debris, preventing dust accumulation from affecting heat dissipation; inspect the sealing performance of the cabin every quarter, check if the sealing parts are aging or damaged, and replace them in time to prevent water vapor and dust from entering the cabin and damaging the equipment.

2. Heat Dissipation System Inspection: Check the cooling and ventilation system inside the cabin every quarter, clear the debris from the ventilation ports, ensure smooth ventilation, and prevent poor heat dissipation from causing equipment overheating; during hot summer weather, increase the inspection frequency to ensure the normal operation of the cooling system.

3. Equipment Operation Monitoring: Daily check the operating status of the equipment through the cabin's monitoring system, focus on monitoring parameters such as voltage, current, and temperature, and stop the equipment in time for inspection if any abnormalities are found to avoid the expansion of faults; conduct a comprehensive inspection of the equipment every six months to identify potential fault hazards.

4. Protection and Anti-corrosion Maintenance: Check the anti-aging powder coating layer of the cabin every six months. If there is paint peeling or rusting, promptly perform re-coating treatment to extend the service life of the cabin; in coastal or areas with high salt spray concentration, increase the maintenance frequency and take measures to prevent salt spray protection.

5. Debugging and Calibration: Conduct a comprehensive debugging and calibration of all equipment inside the cabin once a year to ensure that the equipment's operating parameters meet the standards, the connection is smooth, and the equipment operates stably for a long time, avoiding faults caused by parameter deviations.

Make an immediate purchase

The SVG High Voltage Prefabricated Cabin is directly supplied by Junray Electrical. It features an integrated design, rapid deployment, no need for a dedicated power distribution room, high reliability and low failure rate, and supports customization. It perfectly meets the requirements of various large-scale photovoltaic projects. Contact us immediately to secure this exclusive prefabricated cabin for large-scale photovoltaic power stations, significantly shortening the project cycle, reducing costs, and facilitating the rapid commissioning and stable power generation of photovoltaic projects!
