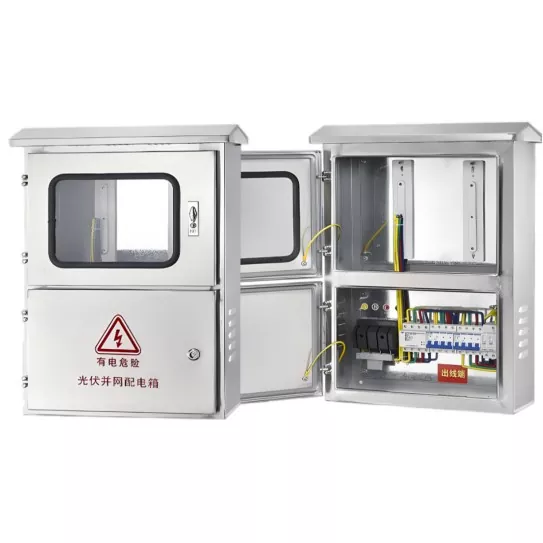

PV Grid-Tied Junction Box

Why is a dedicated PV Grid-Tied Junction Box necessary for grid connection of photovoltaic systems?

After a photovoltaic power station generates electricity, to safely integrate into the grid, the core challenge lies in ensuring grid connection safety and equipment stability. Ordinary distribution boxes do not have dedicated protection functions such as islanding prevention and overvoltage protection. Direct use would pose significant safety risks, not only potentially causing islanding effects, threatening grid safety and the personal safety of maintenance personnel, but also damaging photovoltaic equipment due to abnormal voltage and current. The PV Grid-Tied Junction Box is specifically developed for photovoltaic grid connection scenarios, precisely addressing the compatibility deficiencies of ordinary distribution boxes. It integrates all the protection and detection functions required for grid connection and is a necessary dedicated equipment for photovoltaic power station grid connection, suitable for various types of photovoltaic power stations such as household, industrial and commercial, and ground-based, ensuring a safe, stable, and efficient grid connection process.

Core advantage

Anti-islanding protection, ensuring grid safety: The PV Grid-Tied Junction Box is equipped with a dedicated anti-islanding protection function. When the grid goes down, it can automatically detect it and then automatically disconnect the grid connection of the photovoltaic system to prevent the photovoltaic from continuing to generate electricity, thus avoiding the islanding effect and ensuring the safety of the grid, as well as the safety of maintenance personnel.

Automatic grid connection, intelligent detection: It automatically detects the status of the grid. When the grid returns to normal, it automatically detects and then automatically connects the grid. No manual operation is required, making it intelligent and convenient.

Multiple protections, stable and reliable: Overvoltage, undervoltage, overcurrent, overtemperature multiple protections. When there is a problem with the grid or the photovoltaic, it can automatically disconnect to protect the photovoltaic equipment and the grid, ensuring stability and reliability.

Lightning protection, suitable for outdoor use: It integrates a lightning protection module, which can effectively prevent lightning strikes and perfectly adapt to outdoor photovoltaic power stations, eliminating the concern of lightning strikes.

High cost-effectiveness, lower cost: Compared to ordinary distribution boxes, it integrates all grid connection functions and no longer needs to add protection modules separately, significantly reducing costs and making installation more convenient.

Technical Parameters

Product Details

As a dedicated equipment for photovoltaic grid connection, the PV Grid-Tied Junction Box pays attention to every meticulous detail. From the core components to the wiring process, it strictly follows industry standards, using quality to eliminate purchasing concerns and ensuring long-term stable operation. It is equipped with a dedicated island isolation protection module, with reliable core component quality, which can accurately detect islanding and disconnect from the grid, ensuring safety. It integrates a lightning protection module to specifically address outdoor lightning strike problems, suitable for various outdoor environments. Multiple protection components operate simultaneously, providing comprehensive protection for the equipment and the power grid, eliminating all abnormal situations. The automatic grid connection detection component responds quickly, can accurately monitor the grid status, achieve intelligent grid connection and disconnection, and does not require manual operation. The wiring process is standardized, with strong and weak electrical lines separated, the wiring is level and vertical, the terminal labels are clear, making later maintenance convenient and fast, and it also complies with electrical safety standards, enabling smooth project acceptance.

Product Applications

Residential Solar: Roof-mounted solar for residential use, grid-connected

Commercial and Industrial Solar: Roof-mounted solar for commercial and industrial use, grid-connected

Ground Solar: Solar power stations on the ground, grid-connected

Distributed Solar: Distributed solar power stations, grid-connected

Solar Poverty Alleviation: Solar power stations for poverty alleviation, grid-connected

FAQ

Q: What are the differences between PV Grid-Tied Junction Box and ordinary distribution boxes?

A: Ordinary distribution boxes do not have special protection functions for photovoltaic systems such as islanding prevention and lightning protection, and cannot meet the safety requirements for photovoltaic grid connection. This product is specifically developed for photovoltaic grid connection and integrates functions such as islanding prevention, lightning protection, multiple protections, and automatic grid connection detection. No additional modules need to be added, and it can be directly adapted to photovoltaic grid connection scenarios to ensure safety and stability.

Q: Can it be adapted for outdoor photovoltaic power stations?

A: Yes, it has a built-in lightning protection module. The protection level can be selected as IP40/IP54. It has excellent dust-proof, water-proof and lightning-proof performance and can perfectly adapt to various types of outdoor photovoltaic power stations such as household, industrial and commercial, and ground-based ones, without being affected by the harsh outdoor environment.

Q: Is manual operation required for connecting to the grid and disconnecting from it?

A: No manual operation is needed. The equipment has an automatic grid connection detection function, which can monitor the grid status in real time. When the grid is normal, it automatically connects to the grid; when the grid is abnormal, it automatically disconnects. It is intelligent and convenient, suitable for scenarios without human supervision.

Q: Can the rated power meet the needs of different-sized photovoltaic power stations?

A: Yes, the rated power range is 5kw to 1000kw. Customization is supported. According to the different scale requirements of household, industrial and commercial, ground-mounted photovoltaic power stations, we can customize the specific power to precisely match the project needs.

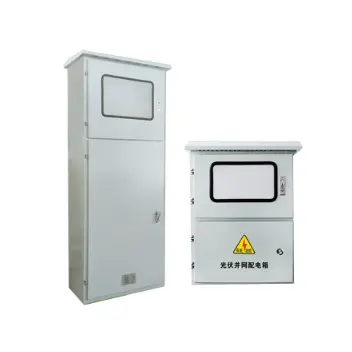

Q: What are the installation options available?

A: We offer two installation methods: wall-mounted and floor-standing. You can choose the one that suits the specific site conditions and installation space of the photovoltaic power station. The installation process is simple and allows for quick deployment, saving construction time.
