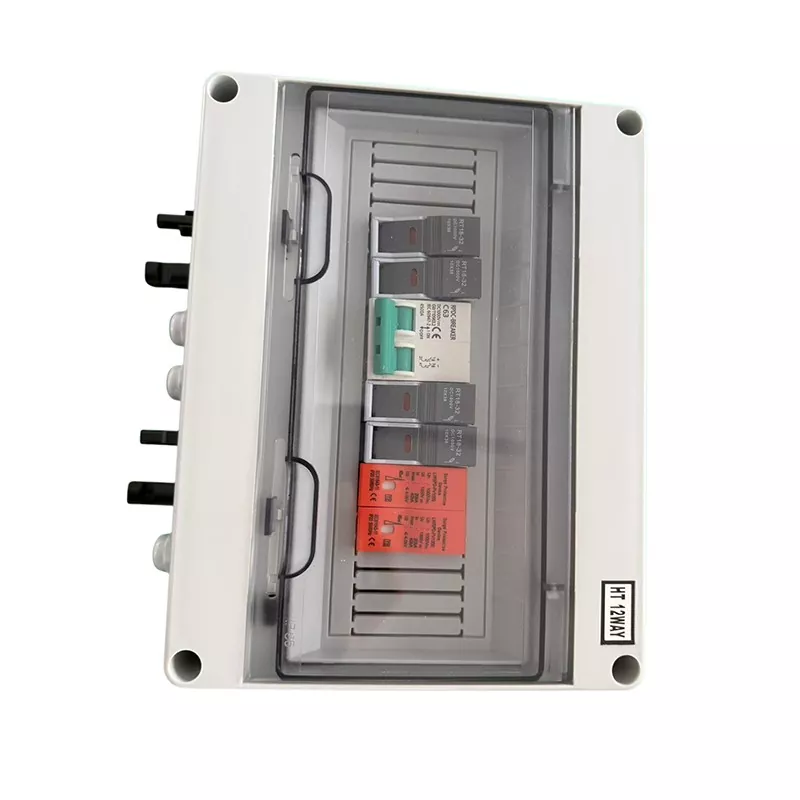

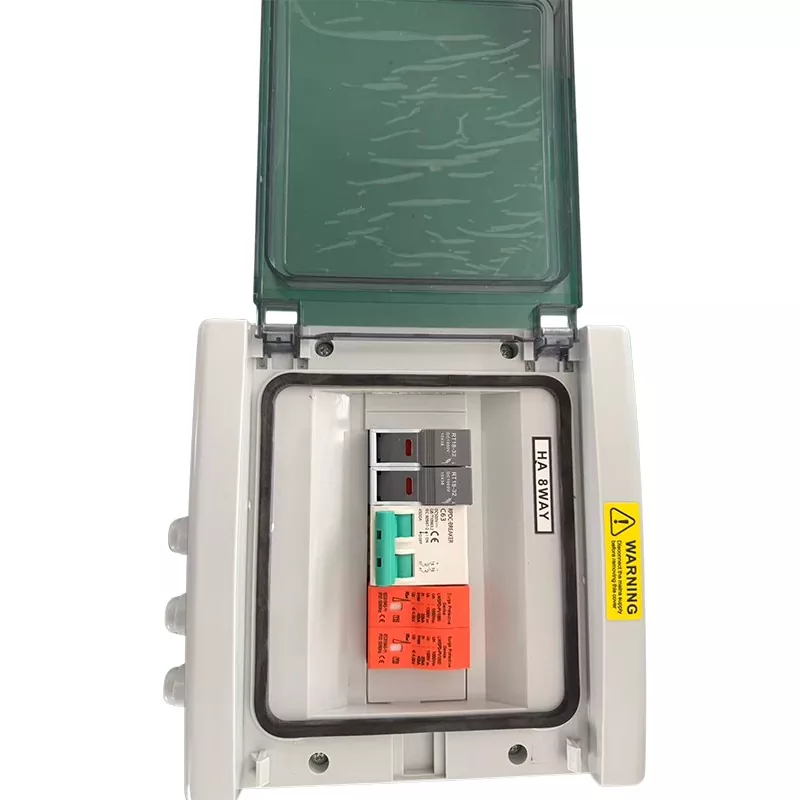

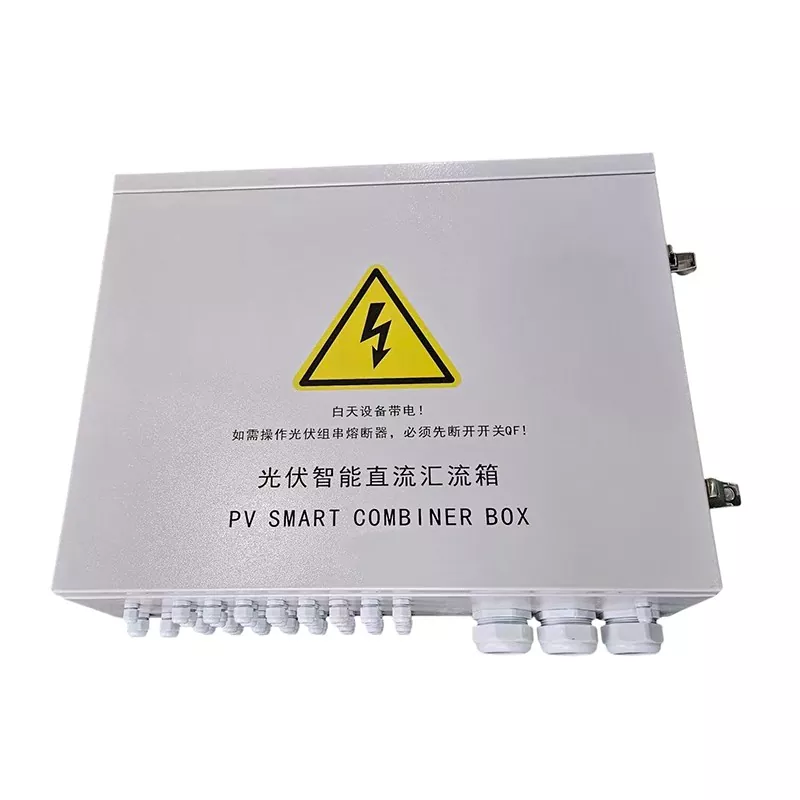

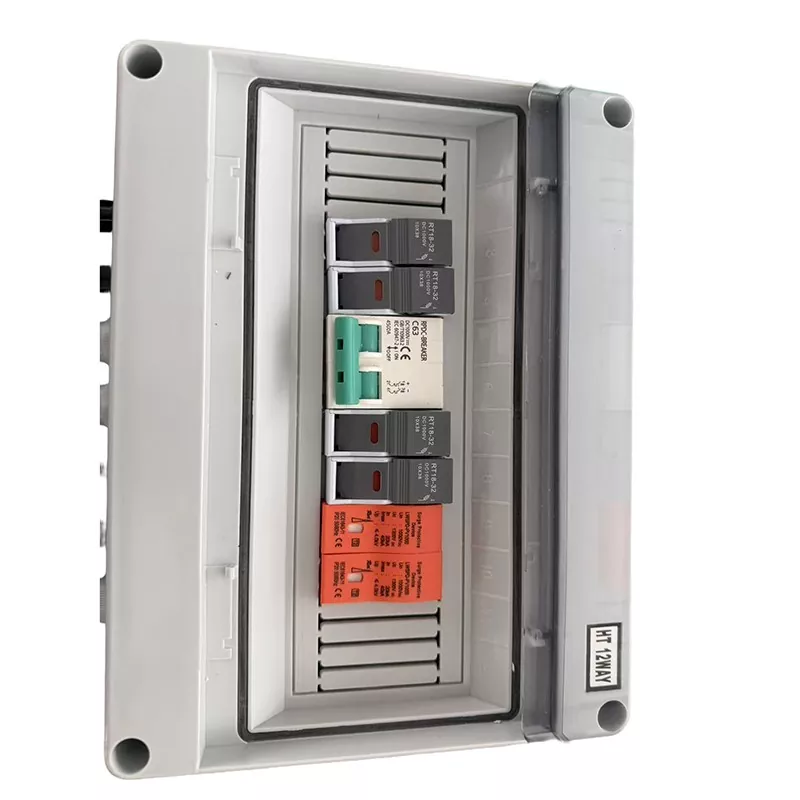

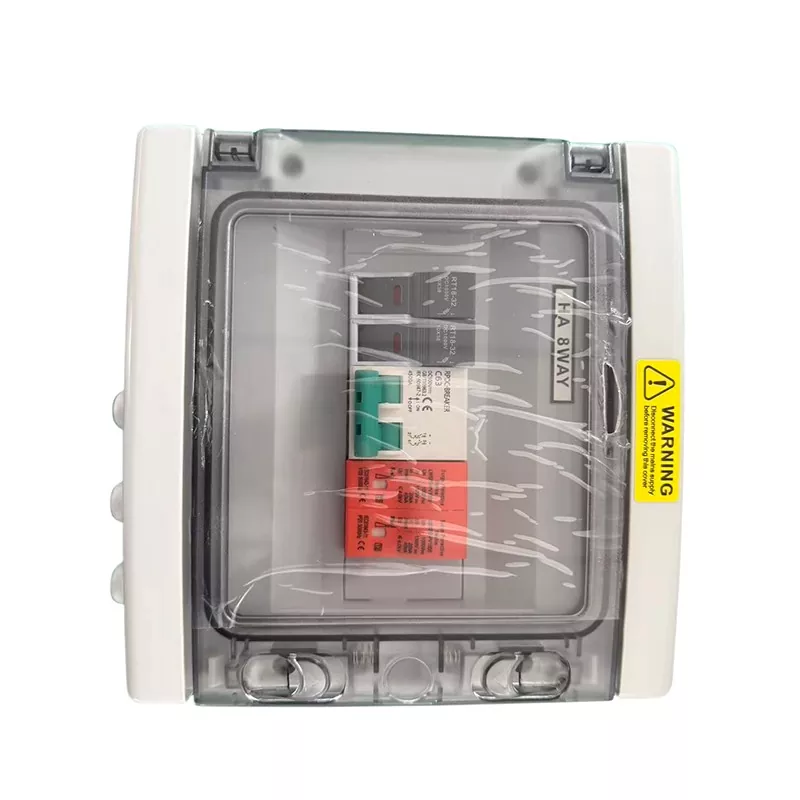

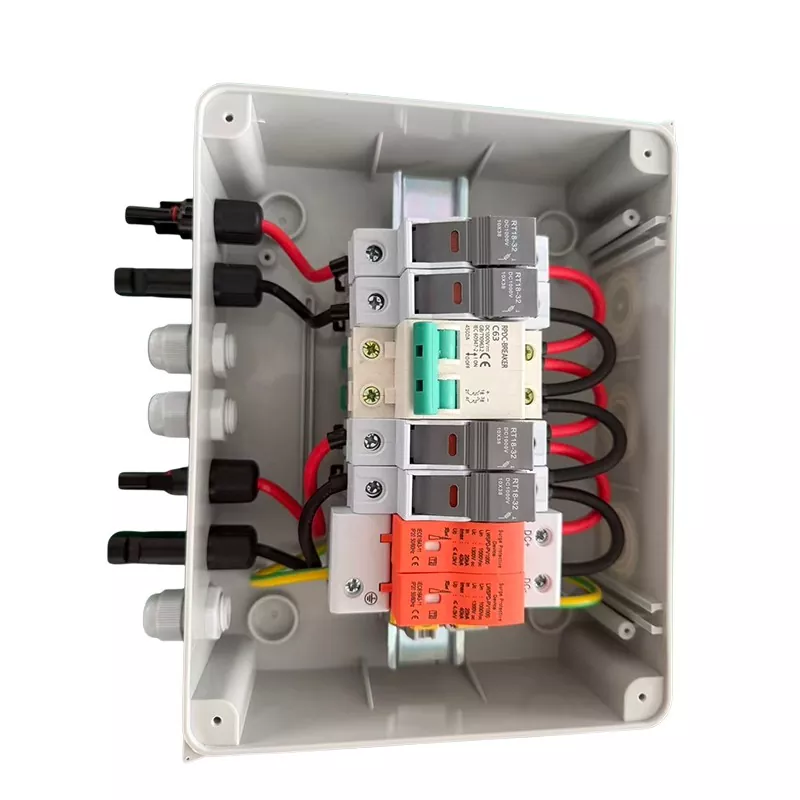

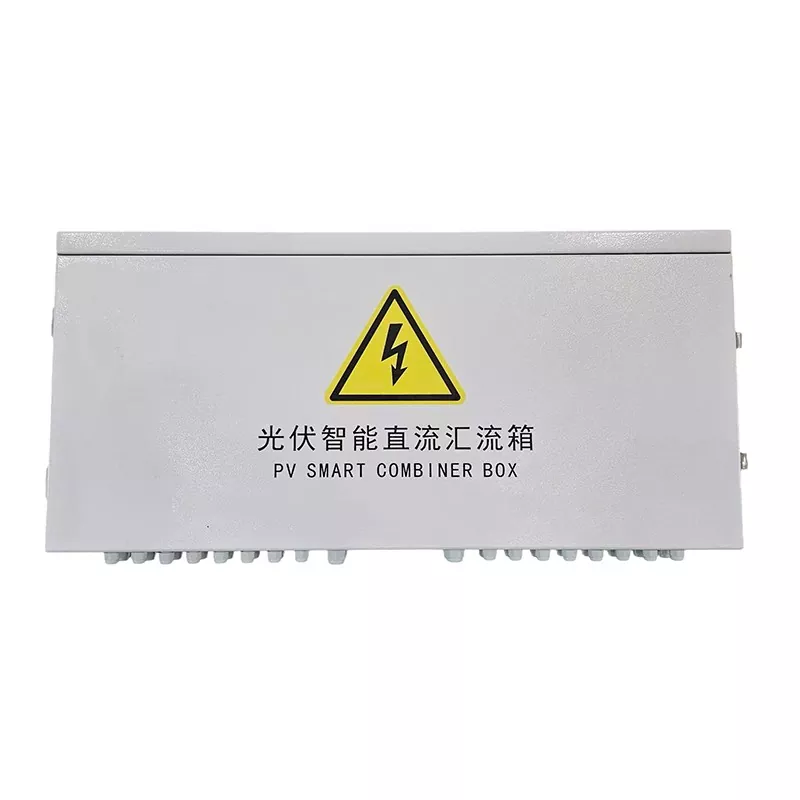

Junray PV DC combiner boxes combine multiple solar module strings for connection to the project DC distribution or inverter arrangement. Listed options include 4 / 6 / 8 / 12 / 16 / 24 circuits, a PC+ABS enclosure and IP65 protection. Intelligent monitoring and communication are configuration-dependent. PV EPC contractors and electrical distributors should confirm the complete DC voltage, string-current, output-current and protective-device ratings. Send quantity and destination country for a quotation.
Junray PV DC combiner boxes combine multiple solar module strings for connection to the project DC distribution or inverter arrangement. Listed options include 4 / 6 / 8 / 12 / 16 / 24 circuits, a PC+ABS enclosure and IP65 protection. Intelligent monitoring and communication are configuration-dependent. PV EPC contractors and electrical distributors should confirm the complete DC voltage, string-current, output-current and protective-device ratings. Send quantity and destination country for a quotation.
How many PV strings can the combiner box accommodate?
The listed circuit options are 4, 6, 8, 12, 16 and 24. Confirm the number of inputs and outputs, maximum array open-circuit voltage at the project minimum temperature, per-string current, total output current and inverter input arrangement before selecting a configuration.
Which DC protection ratings should the buyer confirm?
Specify the required string fuses, DC output switching or circuit breaker, surge protection, earthing and isolation scope. Review voltage, current, polarity, breaking capacity and coordination using the proposed circuit diagram and component datasheets. The page describes DC 1000 V applications; confirm the rating of the complete quoted assembly rather than relying on an individual SPD or power-supply rating.
What monitoring and communication functions are available?
The page lists standard and intelligent versions. For intelligent configurations, confirm string-current sensing, voltage and temperature measurement, device-status inputs, local display, alarms and the signal list. RS485 with Modbus-RTU is listed; agree the register map, interface protection and commissioning scope for the receiving monitoring system.
How should the outdoor enclosure be specified?
The table lists PC+ABS and IP65. Confirm the selected enclosure, cable glands, installed openings, UV exposure, operating temperature and any required corrosion provisions. An IP rating describes ingress protection and does not by itself establish salt-spray or corrosion resistance.
What should Middle Eastern and South American PV projects specify?
Provide maximum ambient temperature, solar exposure, altitude, dust, humidity and coastal conditions, together with the electrical design. Confirm thermal limits, DC component ratings, enclosure materials and project documentation. Agree the auxiliary supply or PV self-powered arrangement and monitoring behavior when the PV voltage is absent.
Technical Specifications
Item
Specification
Circuit Number
4 / 6 / 8 / 12 / 16 / 24 circuits, customizable
Output Circuit Breaker
PV dedicated DC circuit breaker with overload and short circuit protection
Protection Grade
IP65
Material
PC+ABS
Listed Current Options (Scope to Confirm)
32 A / 63 A listed; confirm input/output designation and selected configuration
PV Combiner Box Specifications and RFQ Questions
What information is needed for a PV DC combiner box quotation?
Send the string count, maximum array DC voltage, per-string current, total output current, input and output arrangement, inverter requirements, fuse and SPD requirements, monitoring interfaces, site conditions, quantity and destination country.
Which current ratings should be confirmed before ordering?
Confirm per-string current, total output current, conductor sizes and the selected fuse, switch or circuit-breaker ratings using the proposed circuit diagram. Published table values and individual case configurations must not be combined as one standard assembly rating.
Case Study 1: Rooftop PV Project for a Pharmaceutical Plant in Slovakia
A major local pharmaceutical company in Slovakia operates its production workshops 24/7, requiring extremely high power supply reliability. To align with EU carbon neutrality goals and reduce high industrial electricity costs, the company decided to install distributed PV systems on the roofs of three production facilities.
PV Combiner Box Configuration Details
Model: JY-PV-16-Channel Intelligent DC 1000V
Input per unit: 16 PV module strings (20A per string)
Output circuit breaker: 125A DC circuit breaker (PV-specific)
Lightning protection rating: Type II 40kA DC surge protection
Monitoring functions: 16-channel independent current acquisition + busbar voltage + internal enclosure temperature
Project Outcomes
Annual power generation: Approx. 950,000 kWh (meeting 35% of the plant's production electricity needs)
Return on Investment (ROI): Full investment recovery expected in 6.2 years
Operational data: As of May 2026, 100% combiner box uptime with zero-fault operation
Carbon reduction: Annual CO₂ emissions reduced by approximately 670 tons
Case Study 2: Temporary PV Project at a Construction Site in a Singapore Industrial Zone
This listed application example describes a commercial-complex construction site where temporary power planning was coordinated with the permanent PV system. Confirm the actual temporary and permanent installation scopes, ratings and handover requirements in the project design.
PV Combiner Box Configuration Details
Model: PV-12-Circuit Standard Type (DC 1000V)
Environmental Adaptability: Operating temperature -25°C to +85°C; humidity 95% (non-condensing)
Installation: Dual-purpose wall-mounted or pole-mounted; suitable for temporary site installation
Safety Features: Live-circuit indicator, door lock, and anti-misoperation mechanism
Project Outcomes
Construction Power Supply: Met 100% of the electricity needs for site office and living areas
Cost Savings: Saved approximately SGD 12,000 in monthly electricity costs compared to diesel generators
Relocation & Reuse: Following the completion of Phase 1, 32 combiner boxes were successfully relocated to the Phase 2 site for continued use
Green Building Certification: Contributed to the project achieving BCA Green Mark Platinum certification
