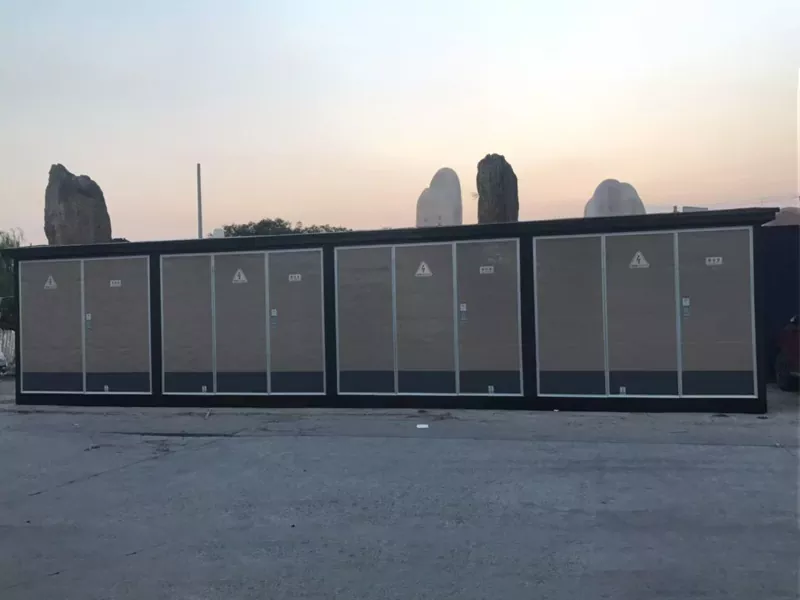

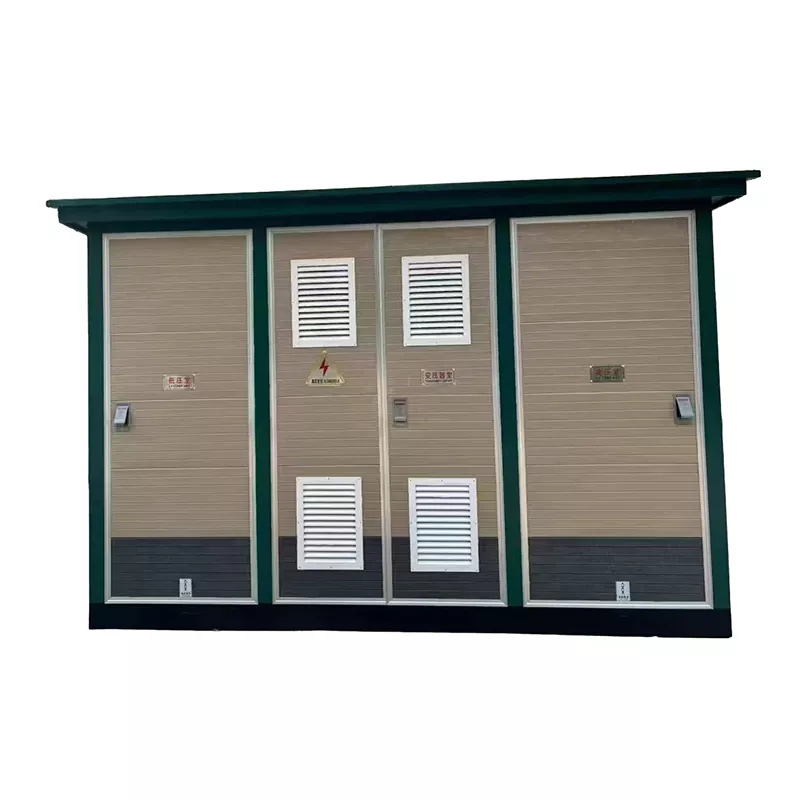

European Style Compact Substation

Directly Addressing the Pain Points

In outdoor power distribution scenarios such as residential areas, factories, and construction sites, it is often necessary to quickly install power distribution equipment. However, ordinary substations have many drawbacks: they occupy a large area and require a significant amount of land resources, with land costs remaining high; the installation process is complex, taking several months from construction to operation, which cannot meet the needs of rapid projects; separate installation of high-voltage cabinets, transformers, and low-voltage cabinets is required, resulting in scattered equipment, high costs, and inconvenient maintenance. The European Style Compact Substation is specifically designed to address these pain points, using a pre-installed integrated design to completely solve the core problems of "slow deployment, large area occupation, and high costs" in outdoor power distribution.

Five Key Advantages

Pre-installed design, quick deployment, shortens construction time: All equipment is pre-installed and debugged in the factory, eliminating the need for complex on-site construction. After being brought to the site, it only requires connecting the lines to be put into use. The deployment can be completed in just a few days. Compared to the several-month installation cycle of ordinary substations, it significantly shortens the construction time and perfectly suits projects that require rapid implementation such as temporary or emergency power distribution at construction sites.

Extremely space-saving, reduces land costs: The European Style Compact Substation adopts an integrated box design, occupying 70% less space than ordinary substations. It does not require a large amount of outdoor space. Even in small outdoor areas of residential areas or factories, it can be easily placed. This significantly reduces land occupation costs and avoids land resource waste, meeting the space requirements of various outdoor scenarios.

IP54 outdoor protection, suitable for harsh environments: With an IP54 professional outdoor protection grade, the box adopts a sealed design, which can effectively prevent water and dust, resist outdoor sun exposure, rain, and dust invasion, prevent internal components from getting wet or accumulating dust and being damaged, ensuring the stable operation of the equipment in outdoor complex environments, and eliminating the need for additional protective facilities.

Integrated design, one box covers everything: Integrating the three core equipment of high-voltage cabinets, transformers, and low-voltage cabinets in one box eliminates the need for separately purchasing and installing multiple devices, simplifying the installation process while significantly reducing equipment procurement and installation costs. Later maintenance is also more convenient, as there is no need to separately maintain multiple devices.

High cost-effectiveness, significant cost reduction: Compared to ordinary substations, this product eliminates the need for complex on-site construction and separate equipment procurement, significantly reducing the overall cost. There is no need to invest a large amount of money in building traditional substations. With lower costs, stable and efficient outdoor power distribution can be achieved, significantly improving the project's cost-effectiveness.

Technical Specifications

Detail-oriented design

Junray Electrical places great emphasis on product detail refinement. Every design is tailored to meet the requirements of outdoor operation. With quality assurance, the equipment can operate stably for a long time, eliminating concerns about procurement. The European Style Compact Substation adopts a pre-installed integrated design. The layout of the high-voltage cabinet, transformer, and low-voltage cabinet is reasonable, with separation of power and control circuits. This not only complies with safety standards but also facilitates later maintenance. The box is treated with outdoor-specific anti-aging powder coating, which is resistant to sun exposure and rain, and will not peel off or rust even when used outdoors for a long time, thus extending the equipment's service life. It is equipped with a dedicated cooling and ventilation system that can quickly remove the heat generated by the transformer's operation, preventing components from aging due to overheating and ensuring stable operation of the equipment. The overall design is standardized, the wiring is neat, and the maintenance is convenient, further reducing the later operation and maintenance costs.

Completely covering all kinds of outdoor power distribution needs

With the advantages of rapid deployment, small footprint, and reliable protection, the European Style Compact Substation is widely applicable to various outdoor power distribution scenarios. It can be directly put into use without additional modifications and has become the standard configuration for outdoor power distribution.

For residential area power distribution scenarios, it is suitable for outdoor power distribution in residential areas, with rapid deployment, small footprint, and ensuring stable electricity supply for residents;

For factory power distribution scenarios, it is suitable for outdoor power distribution in factories, with integrated design to save space and reduce costs;

For photovoltaic power station scenarios, it is suitable for outdoor transformer boxes for photovoltaic power stations, with reliable protection and stable operation;

For construction site temporary power distribution scenarios, it is suitable for temporary power distribution at construction sites, with rapid deployment and meeting the power supply needs for construction;

For park power distribution scenarios, it is suitable for outdoor power distribution in parks, with strong adaptability and ensuring the normal operation of the park.

Standardized production, customized adaptation

Junray Electrical, as a professional European Style Compact Substation Manufacturer, Supplier and Factory in China, strictly follows the European standard for box transformers in production. Each box transformer undergoes power-on debugging, withstand voltage test, and protection test to ensure stable and safe operation, with guaranteed quality and smooth project acceptance. We support capacity customization (100kva to 2500kva) and function customization. Based on the actual needs of customers for outdoor power distribution, we can tailor exclusive European-style box transformers to precisely meet the power distribution requirements of different scenarios, making the procurement more worry-free and the use more reassuring.

If you have any questions, please contact us. Lock in this outdoor power distribution standard equipment, quickly implement the power distribution project, reduce costs and improve efficiency, and make outdoor power distribution simpler and more reliable!
