For scenarios such as rural power distribution, temporary power supply at small construction sites, and small-scale photovoltaic power stations in small outdoor areas, the space is often limited and the budget is tight. However, the European-style box transformers are relatively large in size, making it difficult to be flexibly placed even in small outdoor areas, resulting in high land occupation costs. At the same time, the prices of European-style box transformers are relatively high, causing significant procurement costs for small projects and resulting in unnecessary waste. The American-style Substation, with its extremely compact size and affordable price, perfectly meets the core requirements of small-scale outdoor power distribution, making it more convenient and cost-effective for small outdoor power distribution.
|
Rated Voltage |
High Voltage: 10 kV; Low Voltage: 0.4 kV |
|
Rated Frequency |
50Hz |
|
Transformer Capacity |
50kva~1000kva |
|
Installation Method |
Floor-standing |

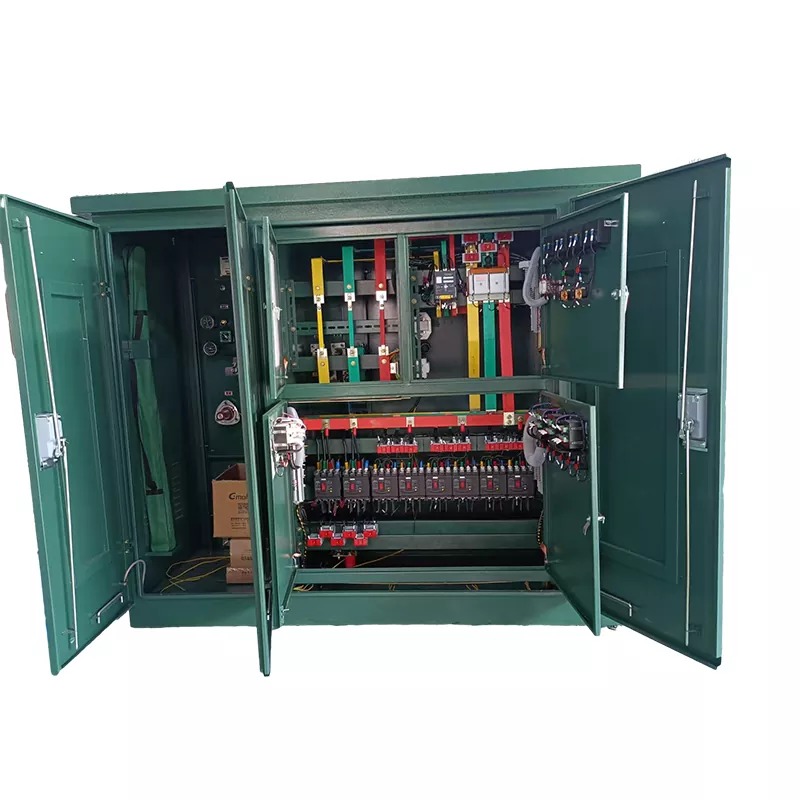

Ultra-compact design, saving 40% of space: With a compact box structure, compared to European-style box transformers, the volume is directly reduced by 40%, significantly reducing the space occupation. It doesn't require occupying too much outdoor land, perfectly adapting to small outdoor scenarios with limited space such as rural areas and small residential communities, effectively saving land costs and allowing for deployment without the need for site renovation.
High cost-effectiveness, price drop by 30%: Eliminating redundant designs and focusing on the core requirements of small outdoor power distribution, compared to European-style box transformers, the price is reduced by 30%. There's no need to spend a large amount on purchasing European-style box transformers. With lower costs, stable small outdoor power distribution can be achieved, significantly reducing procurement budgets and enhancing the cost-effectiveness of small projects.
Pre-installed integration, quick deployment, saving time: Like European-style box transformers, all equipment is pre-installed and debugged in the factory. No complex on-site construction is required. After being brought to the site, just connect the lines and it can be put into use. The deployment can be completed in just a few days, perfectly adapting to small construction sites' temporary power distribution, emergency power distribution, and other small projects that require quick implementation.
IP54 outdoor protection, suitable for various outdoor environments: American-style Substation has an IP54 professional outdoor protection level. The box adopts a sealed design, which can effectively prevent water and dust, resist outdoor sun exposure, rain, and dust invasion, prevent internal components from getting wet and accumulating dust, and damage, ensuring stable operation of the equipment in rural and outdoor construction sites and other complex environments, without the need for additional protective facilities.
Exclusive for small-scale power distribution, stronger adaptability: Specifically designed for small outdoor power distribution scenarios, no large-capacity configuration is required. It perfectly adapts to rural power distribution, small photovoltaic power stations, small residential areas, and other small-scale scenarios' power distribution needs. It doesn't waste capacity and precisely matches the actual electricity demand, avoiding resource waste.
Junray Electrical pays great attention to the refinement of product details. Every design is tailored to meet the requirements of small-scale outdoor operation. With quality as the guarantee, the equipment can operate stably for a long time, eliminating concerns about procurement. It adopts an ultra-compact structure, reducing the volume while ensuring a reasonable layout of internal components, without affecting the equipment's performance. American-style Substation uses outdoor-specific anti-aging powder coating treatment, which is resistant to sunlight and rain. Even when used outdoors for a long time, it will not peel off or rust, extending the equipment's service life. It is equipped with a dedicated cooling and ventilation system, which can quickly remove the heat generated by the transformer's operation, preventing components from aging due to overheating and ensuring the stable operation of the equipment. The overall design separates the power and control circuits, with neat wiring, which not only complies with safety standards but also facilitates later maintenance, reducing operation and maintenance costs.
With its compact size, high cost-effectiveness and rapid deployment advantages, American-style Substation is widely applicable to various small-scale outdoor power distribution scenarios. It can be directly put into use without additional modifications, making it the exclusive top choice for small-scale outdoor power distribution. In rural power distribution scenarios, it is suitable for small-scale outdoor power distribution in rural areas, ensuring stable electricity supply for villagers. In small construction site scenarios， it is suitable for temporary power distribution at small construction sites， with rapid deployment and meeting the power supply needs of construction. In small photovoltaic scenarios， it is suitable for the power distribution box requirements of small photovoltaic power stations， with reliable protection and stable operation. In small residential area scenarios， it is suitable for small residential area outdoor power distribution， saving space and cost, and ensuring electricity supply for residents.
Junray Electrical is a Manufacturer, Supplier and Factory of professional American-style Substations in China. We strictly follow the American standard for transformer boxes in our production. Each transformer box undergoes power-on testing, withstand voltage test, and protection test to ensure stable and safe operation, with guaranteed quality. It can smoothly pass the project acceptance. We offer capacity customization (50kva to 1000kva) and function customization. Based on the actual needs of small-scale outdoor power distribution for customers, we can tailor exclusive American-style transformer boxes to precisely meet the power distribution requirements of different small-scale scenarios, making the procurement process more worry-free and the use more reassuring.
This project involves the power grid upgrade and renovation of an older residential complex in the urban area. Characterized by its age and high population density, the complex originally relied on a distribution setup featuring traditional pole-mounted transformers and outdoor switch racks. The existing equipment suffered from severe aging and insufficient capacity; low-voltage lines were excessively long, resulting in significant voltage deviation. During peak summer usage, the system frequently tripped due to severe transformer overload, failing to meet residents' electricity demands for air conditioning, EV charging stations, and high-power household appliances.
Given the complex's narrow internal roads, dense landscaping, and lack of space for large-scale distribution rooms—and considering factors such as footprint, cost, and construction timeline—the project utilizes the ZGS11 compact American-style box-type substation. This integrated solution combines high-voltage switching, voltage transformation, low-voltage compensation, and power distribution into a single unit, effectively addressing challenges such as capacity expansion difficulties, spatial constraints, and complex construction requirements typical of older urban areas.
Severe capacity shortage: The capacity of the old pole-mounted transformers was inadequate, leading to severe overloads during peak summer loads, frequent overheating, tripping, and power outages.
Poor voltage quality at the load end: Long low-voltage line runs resulted in high line losses and low voltage at the consumer end, causing difficulties in starting appliances and flickering lights.
High failure rate due to aging equipment: Traditional overhead equipment was exposed to the elements (wind, rain, dust, insects), leading to insulation degradation and significant risks of electrical leakage.
Lack of dedicated distribution space: High density and limited open space made it impossible to construct civil foundations for European-style box substations or dedicated distribution rooms, restricting traditional equipment layouts.
Cumbersome O&M: Equipment was scattered and wiring disorganized, making fault diagnosis difficult and emergency repairs time-consuming, resulting in a high rate of resident complaints.
To meet the requirements for compact layout, rapid commissioning, and cost-effective reliability in this urban renovation project, the ZGS11-10kV compact American-style box-type substation was selected. This unit integrates high-voltage load switches, backup fuses, energy-efficient transformers, low-voltage distribution components, and reactive power compensation units. The entire system is factory-prefabricated, allowing for direct on-site hoisting and commissioning. Key Equipment Specifications
Model: ZGS11-12/630kVA American-style prefabricated box-type substation
Rated Voltage: 10kV/0.4kV
Structural Features: Fully sealed, integrated design; high-voltage side protected by a load-break switch combined with current-limiting fuses
Insulation Medium: Eco-friendly mineral oil insulation; self-cooling; maintenance-free operation
Low-Voltage Configuration: Integrated incoming/outgoing lines, reactive power compensation, and metering
Protection Rating: Rainproof, dustproof, and condensation-resistant; suitable for outdoor residential environments
Installation Method: Simple ground-based foundation with hoisting; no need for a dedicated distribution room or complex civil engineering
Space-Saving Design: Compact American-style structure with a footprint only 60% that of European-style substations; ideal for installation in tight spaces or corners of green belts within residential areas.
Rapid Construction: Fully prefabricated and tested at the factory; on-site work is limited to foundation preparation, hoisting, and wiring, significantly shortening the duration of power-outage-related upgrades.
Reliable & Sensitive Protection: High-voltage side utilizes a "load-break switch + current-limiting fuse" combination, ensuring instantaneous isolation of short-circuit and overload faults to safeguard equipment.
Fully Sealed & Maintenance-Free: Fully sealed enclosure prevents oil leakage and dust ingress; offers excellent outdoor weather resistance and requires no routine maintenance.
Cost-Effective: Eliminates the need for civil-engineered distribution rooms; high level of equipment integration significantly reduces investment costs compared to traditional solutions.
Elimination of Overload Issues: Capacity upgrade ensures no overloads or tripping during peak summer usage, permanently resolving chronic power outage problems in the area.
Improved Voltage Quality: Shortened power supply radius and reduced line losses stabilize voltage at the consumer end within standard ranges, ensuring proper operation of electrical equipment.
Elimination of Safety Hazards: Replaces aging, exposed overhead equipment; the fully enclosed unit eliminates risks of electric shock, short circuits, and faults caused by foreign objects, significantly enhancing residential electrical safety.
Reduced O&M Burden: Integrated, maintenance-free design results in extremely low failure rates and clear fault identification, greatly improving maintenance efficiency. The residential area environment is tidy and orderly: cluttered overhead lines and aging equipment have been removed, creating a unified, aesthetically pleasing appearance and enhancing the standardized image of the community's power distribution infrastructure.
American-style box-type substations are a mainstream, cost-effective power distribution solution widely used in the renovation of older urban areas, capacity upgrades for residential neighborhoods, street lighting projects, small-scale commercial and industrial applications, and photovoltaic grid-connection sites. They offer advantages such as a compact footprint, low cost, rapid installation, high integration, maintenance-free operation, and excellent outdoor durability. These substations are particularly well-suited for distribution system upgrades where space is limited, schedules are tight, and cost-effectiveness is a priority, making them an ideal choice for capacity expansion at the edge of urban distribution networks.
Question: What is the main difference between American-style switchgear and European-style switchgear?
Answer: The core difference lies in size and price: American-style switchgear is 40% smaller in size and 30% cheaper than European-style switchgear, making it more suitable for small outdoor scenarios. Both are pre-assembled designs, and the deployment speed is the same. However, American-style switchgear focuses more on small-scale power distribution and does not require redundant capacity, thus having a higher cost-effectiveness.
Question: Can the IP54 protection of American-style Substation adapt to harsh environments?
Answer: Yes, the IP54 protection can effectively prevent water and dust. Combined with the outdoor anti-aging powder-coated box, it can withstand the sun exposure, rain, and dust in rural outdoor conditions, prevent damage to internal components, ensure the long-term stable operation of the equipment, and there is no need for additional protection.
Question: Can the capacity be customized? Can it meet the requirements of small-scale scenarios?
Answer: Yes, the capacity ranges from 50kva to 1000kva. Customization is supported. Based on the actual electricity consumption requirements of small-scale scenarios such as rural areas and small construction sites, an appropriate capacity can be selected for precise matching, avoiding capacity waste.
