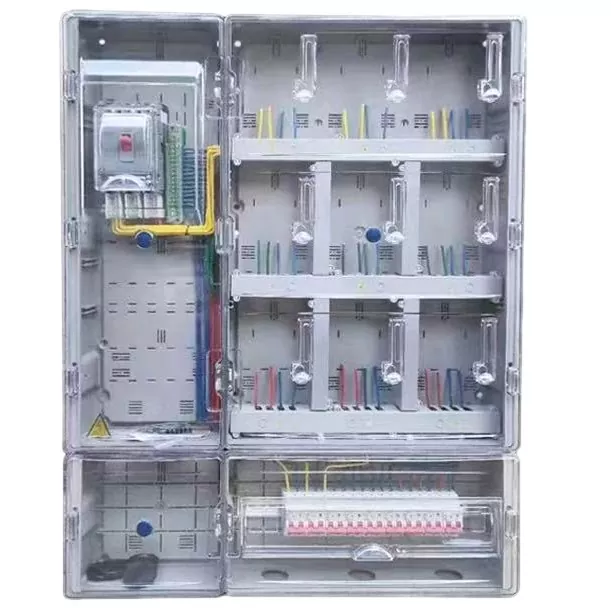

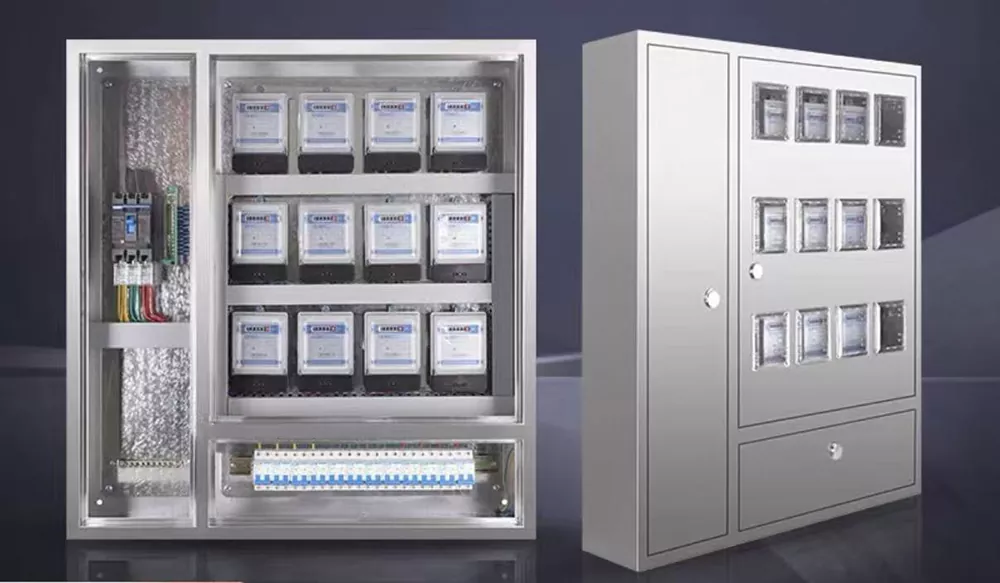

Outdoor Meter Box

The Outdoor Meter Box is a dedicated power distribution protection enclosure specifically developed for outdoor, unshielded outdoor scenarios. It differs from ordinary indoor meter boxes. Its core focus is to solve the problems of outdoor power distribution protection. For outdoor environments such as rain, sun exposure, and dust, we have made exclusive optimized designs for rainproof, anti-corrosion, and sealing. It can be flexibly installed with electrical equipment such as meters, circuit breakers, and metering components, effectively protecting the internal components from external environmental influences, ensuring the safe and stable operation of the outdoor power distribution system, and completely addressing the industry pain points of ordinary enclosures being prone to water ingress, rusting, and damage when used outdoors. It is suitable for various unshielded outdoor power distribution scenarios.

What are the core selling points?

The core advantages of the Outdoor Meter Box lie in its exclusive outdoor protection and practical adaptability. Each advantage is tailored to meet the needs of outdoor use, balancing safety and durability.

Firstly, it has triple rainproof protection. A dedicated sloping rainproof canopy is installed on the top, combined with the sealing rubber strips inside the box, forming a tight rainproof barrier. The rainproof rating reaches IP54, ensuring that the internal electrical components are not dampened or flooded even in heavy rain.

Secondly, it has dust-proof and sealing protection. It adopts a fully enclosed sealing structure, effectively blocking dust and mosquitoes from entering the box, preventing contact problems and short circuits caused by dust, and ensuring the long-term stable operation of the components.

Thirdly, it features outstanding craftsmanship details. The sloping rainproof canopy is equipped with a dedicated rainproof eave, high-density sealing rubber strips, thick anti-theft safety lock, and dedicated rainproof ventilation holes. It combines protection, anti-theft, and heat dissipation, and the cabinet material can be selected to meet the needs of different outdoor environments.

Technical Specifications

Q&A

Q: Can the Outdoor Meter Box be adapted to harsh outdoor environments such as heavy rain and high temperatures?

Answer: Yes. It has a protection level of IP54, a corrosion resistance level of C4, and a usage temperature range of -40℃ to +70℃. It is not affected by heavy rain, direct sunlight, or extreme cold, and can operate stably in outdoor conditions for a long time.

Q: What electrical components can be installed?

A: Various components such as electricity meters, circuit breakers, and metering devices can be flexibly installed to meet the requirements of outdoor power distribution and control.

Q: Is the installation convenient?

Answer: It supports two simple installation methods: wall-mounted and column-mounted. There are no complicated procedures involved. The installation is convenient and can be quickly deployed.

Q: Can the material be chosen as per requirements?

Answer: Yes, we offer two options: high-quality cold-rolled steel plate powder coating and stainless steel. You can choose the one that suits your outdoor environment and procurement budget.

Application scenario

With excellent outdoor protection performance and flexible adaptability, Outdoor Meter Box is widely used in various outdoor power distribution scenarios without any obstructions, precisely matching the protection needs of different scenarios. In rural distribution area scenarios, it can be used for the protection of electricity meters and power distribution equipment in rural outdoor distribution areas, helping to ensure the safety of rural power distribution; in outdoor shopping mall scenarios, it is suitable for the installation of open-air electricity meters in street-facing outdoor shopping malls, providing protection that is both practical and aesthetically pleasing; in roadside power distribution scenarios, it can provide protection for outdoor power distribution equipment such as street lamps and charging piles, ensuring the normal operation of the equipment; in construction site temporary electricity supply scenarios, it is suitable for the protection of outdoor temporary electricity supply and electricity metering equipment at construction sites, with convenient installation, safety and reliability; in park supporting scenarios, it can be used for outdoor power distribution and metering boxes in parks, standardizing the outdoor power distribution environment and enhancing the safety of power distribution.

Maintenance Recommendations

To ensure the long-term stable operation of the Outdoor Meter Box and extend its service life, please read the following practical maintenance suggestions.

1. Regular Cleaning and Maintenance: Clean the surface of the box every 3-6 months. Use a dry cloth to wipe off dust and stains to prevent dust accumulation from affecting heat dissipation and appearance; remove debris around the box to ensure smooth ventilation and prevent blocking of the rain-proof ventilation holes, avoiding poor heat dissipation.

2. Sealing and Rainproof Inspection: Check the sealing rubber strips of the box every 6 months. If any are missing, aged, or damaged, replace them promptly to ensure sealing performance and prevent water and dust from entering; inspect the slope-type rainproof roof and rainproof eaves to ensure there is no looseness or deformation, and avoid poor drainage of rainwater.

3. Electrical Component Inspection: Open the box every 12 months (operate with power off), check whether the wiring of the internal electricity meters, circuit breakers, etc. is firm, and check for any looseness or oxidation; clean the internal dust to avoid dust causing poor contact and short circuits, ensuring the normal operation of electrical components.

4. Theft and Protection Inspection: Regularly check the reinforced anti-theft safety lock to ensure the lock is intact and the switch operates smoothly, preventing malicious damage and electricity theft; if the cabinet has peeling paint or rust, promptly apply paint (cold-rolled steel plate spray coating material) to enhance the anti-corrosion performance.

5. Environmental Adaptability Maintenance: Increase inspection frequency during cold, hot, or rainy seasons; avoid the box remaining in waterlogged or highly corrosive environments for a long time. If there is water accumulation in the installation area, clear it promptly, adjust the installation position, and ensure the equipment operates within the specified environmental temperature range (-40°C to +70°C).

Renovation Case Study

I. Project Overview

This project involves the power infrastructure upgrade of an older urban residential area and its street-front shops. The area comprises multi-story residential buildings and ground-floor commercial units; the existing meter boxes were mounted openly on exterior walls, leaving them constantly exposed to sunlight, rain, humidity, and dust. The original, rudimentary meter boxes—constructed from assembled thin sheet metal—lacked professional waterproofing or sealing and offered poor protection. Long-term operation led to issues such as casing corrosion, damaged doors, and water ingress, frequently causing short circuits, meter malfunctions, and metering anomalies. These conditions posed serious risks of electric shock and electrical fires and failed to meet the State Grid’s standardization requirements for "one-meter-per-household" installations.

To thoroughly eliminate outdoor electrical safety hazards, standardize metering equipment, and improve power supply stability, all old and damaged meter boxes in the area were replaced with outdoor meter boxes compliant with national standards for rain and dust protection. Standardized installation practices were adopted to ensure comprehensive protection against water, moisture, electricity theft, and aging, while enhancing overall safety.

II. Issues Prior to Renovation

Extremely poor waterproofing; frequent water ingress during rain: The old sheet-metal boxes lacked rain guards and sealing strips; during rain or snow, water seeped inside, causing terminal oxidation, leakage currents, short circuits, and tripped breakers.

Severe casing corrosion and damage: Long-term outdoor weathering caused perforations in the sheet-metal casings, detached doors, and lock failures, leaving internal equipment completely exposed and creating significant safety hazards.

Lack of anti-theft capabilities: The rudimentary box structure and absence of specialized tamper-evident seals made it easy to tamper with wiring, leading to electricity theft and unauthorized connections, resulting in persistently high line losses.

Poor insulation; high risk of electric shock: Corrosion and deformation of the casing brought live components close to the outer shell; damp conditions during rain easily caused the shell to become electrified, threatening residents' safety.

High equipment failure rates and heavy maintenance workload: Meters, circuit breakers, and terminals suffered from long-term moisture and corrosion, leading to inaccurate metering and frequent equipment damage, resulting in high maintenance and repair costs. III. Equipment Configuration Plan

In accordance with State Grid installation standards for outdoor metering devices and the specific conditions of street-facing residential/commercial areas, this project utilizes high-strength, rainproof outdoor meter enclosures. Configured for both single-household and multi-household setups, they are suitable for wall-mounted installation on residential buildings and storefronts. The complete system meets all standards for waterproofing, dustproofing, rust resistance, tamper resistance (anti-electricity theft), and electrical insulation.

Core Equipment Specifications

Equipment Type: Outdoor rainproof and dustproof smart meter enclosure

Application Scenarios: Residential housing, street-facing shops, outdoor wall-mounted installation

Protection Rating: IP54; fully compliant with outdoor conditions involving sun exposure, rain, dust, and humidity

Enclosure Material: High-strength flame-retardant ABS or stainless steel; resistant to aging, corrosion, deformation, and rust

Waterproof Structure: Integrated rain-shedding canopy, full-perimeter sealing gasket, waterproof bottom cable entry, and tiered water-diversion design

Functional Features: Separate metering and circuit breaker compartments, dedicated lead-seal lock, tamper-resistant latches, and transparent viewing window

Safety Design: Fully insulated structure, no exposed live parts, accidental-contact prevention barriers, and reliable grounding design

Installation Standards: Neat wiring, separation of high- and low-voltage lines, waterproof mounting, standardized cable slack management, and uniform labeling/numbering

IV. Installation and Application Highlights

Superior Waterproofing & Moisture Resistance: Designed for harsh outdoor environments; features a dedicated rain-shedding structure and fully sealed gaskets to block rain, condensation, and dust, effectively eliminating common short-circuit issues caused by water ingress.

Rust & Aging Resistance: Constructed from flame-retardant, anti-corrosive materials that withstand intense sun exposure and wind/rain erosion; ensures long-term durability without cracking, rusting, or deforming, eliminating the need for frequent replacements.

Anti-Theft Design: Features dedicated lead-seal locks, tamper-resistant structures, and an enclosed layout to prevent unauthorized opening, modification, or electricity theft, thereby standardizing power usage within the distribution area.

Comprehensive Insulation & Safety: Internal live parts are fully isolated with accidental-contact prevention measures; the enclosure offers excellent insulation, completely eliminating risks of the casing becoming live or accidental electric shock to personnel. Aesthetically standardized and easy to maintain: Features uniform specifications, installation heights, and labeling; ensures meters are clearly visible; and facilitates efficient inspections, meter readings, and maintenance.

V. Operational Results After Retrofitting

Complete elimination of safety hazards: Thoroughly resolves issues such as water ingress, corrosion, and exposed live parts; prevents electric leakage, short circuits, and electrical fires; and significantly enhances electrical safety.

Precise metering and compliant line loss: Equipment operates in a dry, stable environment; meters and terminals remain free from corrosion or aging; metering errors are eliminated; and the distribution area's aggregate line loss is reduced to within State Grid standard limits.

Significant reduction in equipment failure rates: Moisture- and dust-proof structures ensure stable internal component operation; failure frequency for meters and circuit breakers drops markedly; and equipment integrity reaches 100%.

Elimination of electricity theft: Tamper-evident seal designs standardize usage management; unauthorized wiring and electricity theft are virtually eliminated; and orderliness in electricity consumption is established.

Successful State Grid acceptance: Construction techniques, equipment protection, and safety configurations all meet standards, resulting in the successful acceptance of the power infrastructure upgrade for the older residential community.

VI. Case Summary

Outdoor rainproof meter boxes are essential infrastructure for retrofitting older residential communities, powering street-front shops, and implementing outdoor individual-household metering. Designed to withstand harsh outdoor conditions—including humidity, wind, rain, and sun exposure—these units utilize high-level IP54 protection, waterproof sealing, anti-corrosion/anti-rust properties, and anti-theft structural designs. They effectively resolve common issues found in older meter boxes—such as water ingress, rusting, leakage, and metering inaccuracies—while significantly improving power supply reliability, safety, and metering precision. They serve as indispensable, standardized equipment for quality upgrades to both rural and urban power grids.
