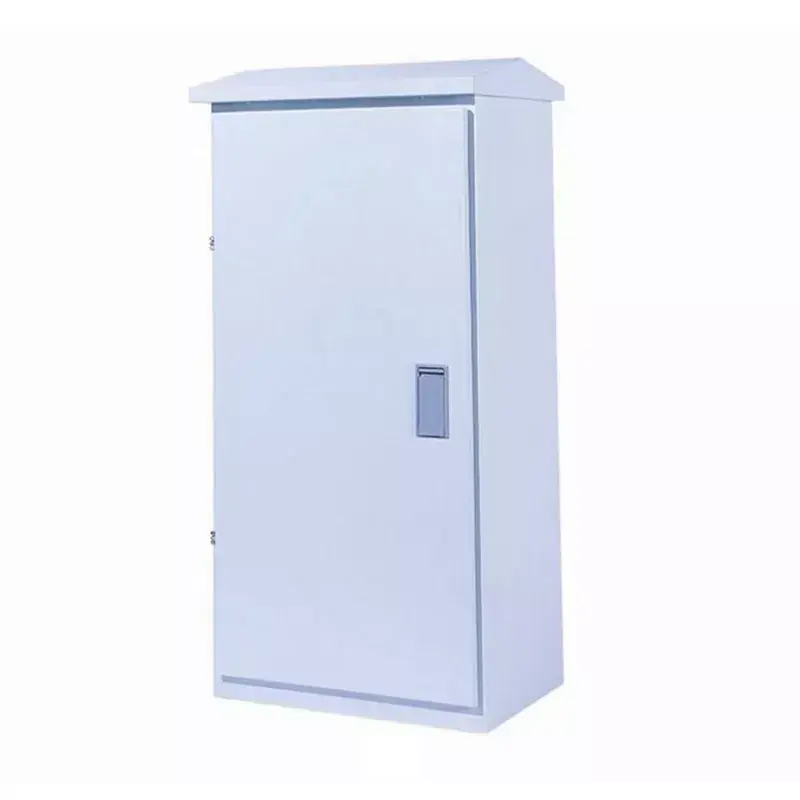

XL-21 Outdoor Waterproof Power Cabinet

Outdoor power pumps, fans, crushers and other power equipment, the safety of power distribution directly affects the production progress. However, ordinary indoor power cabinets simply cannot adapt to the outdoor environment - when placed in the open air, they will get wet and rust within a short time. Wind and rain erosion will also cause damage to the internal components, making them unable to withstand large current power circuits. Frequent malfunctions and shutdowns not only increase maintenance costs but also delay the construction schedule. The XL-21 Outdoor Waterproof Power Cabinet is specifically designed for outdoor power supply, addressing these pain points and providing stable and safe power distribution guarantees for outdoor power equipment.

Technical Specifications

IP54 waterproof design

We strictly adhere to the IP54 protection standard, combining a sloping rainproof canopy with a high-density sealing rubber strip around the door frame to form a double waterproof barrier. This can effectively prevent rainwater splashes and water vapor from entering. Even in outdoor situations with heavy rain, it can ensure that the internal power components remain dry and free from water, guaranteeing the stable operation of the power equipment and meeting the requirements of outdoor protection standards.

High current carrying capacity

The XL-21 Outdoor Waterproof Power Cabinet supports a rated current ranging from 100A to 630A. It is equipped with large-sized and thickened copper busbars, featuring a large current-carrying capacity and low temperature rise. It can easily provide power distribution for large power equipment such as outdoor large water pumps, fans, crushers, etc., meeting the requirements of ultra-large power circuits and ensuring the long-term stable operation of the equipment. It is suitable for industrial-grade high current usage scenarios.

Impact-resistant and durable

We use thickened cold-rolled steel plates or 304 stainless steel materials (choices can be made as needed). The cabinet has high strength, is resistant to impact and impact force. Even in scenarios prone to bumps and impacts such as construction sites and mines, it will not easily deform or be damaged. It is durable and long-lasting, capable of adapting to harsh outdoor environments such as sun exposure and corrosion for a long time. It complies with C4-level anti-corrosion standards and can resist erosion from highly corrosive environments.

Landing Adaptation

It adopts a standard landing design and can be directly placed on the outdoor ground or platform without any complex installation procedures. It is compatible with all conventional power components. Whether for new scene installation or replacing the old outdoor power box, it can be directly adapted without the need for wiring modifications, significantly reducing construction time and installation costs.

Detailed Design

Junray Electrical attaches great importance to the meticulous refinement of its products. From core protection to daily usage, every design of the XL-21 Outdoor Waterproof Power Cabinet is tailored to meet the requirements of outdoor power distribution. With quality, it builds a secure defense line. The sloping rainproof roof cover is combined with a dedicated rainproof eave, guiding the rainwater to flow quickly and preventing it from seeping into the interior of the cabinet. The fully sealed high-density rubber strips effectively block wind, water vapor, and dust, enhancing the waterproof and dustproof performance. The large-sized thick copper busbars ensure stable transmission of high currents and reduce heat loss. The thick anti-theft safety lock effectively prevents electricity theft and malicious damage, providing comprehensive protection for outdoor power usage safety while also considering practicality and security.

Applicable scenarios

With excellent protective performance, large current carrying capacity and durability characteristics, the XL-21 Outdoor Waterproof Power Cabinet is widely applicable to various outdoor power distribution scenarios, precisely matching the needs of different industries. In outdoor water pump scenarios, it is suitable for power distribution of outdoor sewage pumps, water supply pumps, and irrigation pumps, ensuring the stable operation of water supply and irrigation systems; in outdoor fan scenarios, it is suitable for power distribution of outdoor fans and air compressors, ensuring the smooth operation of equipment; in construction site power scenarios, it is suitable for outdoor power equipment and temporary power distribution at construction sites, featuring durability, ease of installation; in mining equipment scenarios, it is suitable for power distribution of outdoor crushers and screening equipment in mines, protecting against harsh environments; in outdoor factory scenarios, it is suitable for power distribution of outdoor factory workshops and open production lines, ensuring smooth production progress.

FAQ

Q: Can the IP54 protection level withstand rainy weather?

A: The XL-21 Outdoor Waterproof Power Cabinet has an IP54 protection level. It can effectively prevent rainwater splashes and water vapor from entering. It is equipped with a sloping rainproof roof and fully sealed rubber strips. Even if it is exposed to heavy rain outdoors, it can ensure that the internal components are not damp or waterlogged, guaranteeing the normal operation of the power equipment and meeting the requirements of outdoor protection standards.

Q: What options are available for the cabinet material?

A: The cabinet material can be either cold-rolled steel powder-coated or 304 stainless steel. Both materials have the characteristics of resistance to impact and durability. Among them, 304 stainless steel has stronger anti-corrosion performance and can perfectly adapt to harsh environments such as mines and beaches. It also complies with C4-level anti-corrosion standards and can resist the erosion of highly corrosive environments, and is not prone to rust or damage.

Q: Do we need to rewire when replacing the old box?

A: No, this product is compatible with all conventional power components and is sized to fit with ordinary outdoor power boxes. Whether it's a new installation or replacing an old box, it can be directly compatible without the need to modify the original wiring. The installation is convenient and saves construction time.

Q: Can the rated current be customized?

A: Yes, the rated current range is 100A to 630A. Customization is supported. We provide large-sized copper busbars with a large current-carrying capacity, which can perfectly meet the power distribution requirements of large power equipment such as outdoor large water pumps and crushers. It is suitable for industrial-grade high-current usage scenarios.

Retrofit Case Study

I. Project Overview

This project involves the landscape upgrade and renovation of an urban municipal park. The site features high-power loads—such as large-scale musical fountain pump sets, landscape lighting, outdoor exhaust equipment, and irrigation pumps—with all power equipment installed outdoors near the lake, within green belts, and in open areas. The original standard indoor power cabinets and simple sheet-metal enclosures lacked adequate ingress protection; they could not withstand exposure to rain, intense sunlight, high humidity, and corrosive lake mist. Frequent malfunctions—including water ingress, moisture-induced circuit breaker tripping, terminal corrosion, and equipment shutdowns—severely disrupted the park's landscape systems and posed risks of electric shock and electrical fires.

To ensure the long-term, safe operation of heavy-duty outdoor power equipment, all units were replaced with XL-21 outdoor rainproof and corrosion-resistant power distribution cabinets. These cabinets handle centralized power distribution, overload and short-circuit protection, and local control for high-power pumps, lighting, and landscape equipment, guaranteeing stable year-round operation of the park's landscape systems.

II. Pre-Retrofit Issues

Inadequate protection and frequent water ingress during rain: Standard indoor cabinets lacked rain hoods and double-layer waterproofing; rain and mist penetrated the enclosures, causing moisture-induced short circuits and tripping of circuit breakers and contactors.

Severe corrosion due to high humidity near the lake: High moisture levels from the lake and significant diurnal temperature fluctuations caused standard iron cabinets to rust and peel rapidly; rusted-through baseplates exposed live electrical components.

Inability to handle heavy-duty outdoor loads: Old, simple cabinets featured disorganized internal layouts and poor current-carrying capacity; high-power pumps frequently experienced overheating, loose connections, and shutdowns during startup and operation.

Control failures caused by condensation and water accumulation: Significant internal condensation resulting from temperature fluctuations caused relays and control circuits to malfunction, leading to erratic operation of fountain and lighting systems.

High operational risks and failure rates: Frequent equipment breakdowns and power outages for maintenance disrupted the park's visual appeal and resulted in consistently high operation and maintenance costs. III. Equipment Configuration Plan

To meet the demands of the municipal park's outdoor setting—characterized by high humidity, corrosive conditions, and heavy-duty power loads—the site is equipped with standardized XL-21 outdoor rainproof power distribution cabinets. These units feature a reinforced waterproof structure and provide centralized multi-circuit power output, local start/stop control, overload and short-circuit protection, and fault isolation capabilities.

Core Equipment Specifications

Model: XL-21 Outdoor Rainproof & Corrosion-Resistant Power Distribution Cabinet

Applicable System: 380V/220V low-voltage power distribution system

Protection Rating: IP55 (rainproof, dustproof, condensation-resistant; withstands outdoor sun exposure and humidity)

Cabinet Structure: Double-door rainproof design, top rain-shedding canopy, and bottom waterproof cable glands

Material & Finish: Thickened cold-rolled steel plate with electrostatic powder coating and anti-corrosion/anti-rust treatment; suitable for high-humidity, corrosive lakeside environments

Internal Configuration: Main switch + multiple branch circuit breakers, AC contactors, thermal overload protection, terminal blocks, and grounding system

Control Functions: Local start/stop for water pumps and fans, overload protection, short-circuit protection, and fault-triggered power isolation

Installation Method: Outdoor floor-standing or elevated wall-mounting to prevent immersion from ground-level water accumulation

IV. Construction & Application Highlights

Double-layer waterproof structure completely prevents water ingress: Features a rainproof outer door and sealed inner door, combined with a top rain canopy and bottom waterproof cable glands, to fully withstand heavy rain and lakeside mist, ensuring the interior remains permanently dry.

Corrosion-resistant and weather-proof for harsh outdoor conditions: Thickened anti-corrosion powder coating offers resistance to UV rays, humidity, salt spray, and moisture; ensures no rusting, deformation, or coating peeling during long-term outdoor use.

High heavy-duty power capacity: The XL-21 standard cabinet features a compact structure, high current-carrying capacity, and excellent heat dissipation; specifically designed for high-power pump sets and outdoor power equipment to eliminate overheating or loose connections.

Multiple electrical protections ensure operational safety: Comprehensive protection against short-circuits, overloads, phase loss, and thermal overloads; independent isolation of single-circuit faults ensures the operation of other equipment remains unaffected. Organized layout and convenient O&M: Neat internal wiring, layered and zoned configuration, and clear labeling make maintenance, troubleshooting, and future capacity expansion extremely easy.

V. Operational Performance After Retrofit

Complete resolution of moisture-related faults: Despite heavy seasonal rains and condensation caused by diurnal temperature fluctuations, the enclosure interior remains dry and dust-free, with no tripping or short circuits due to moisture.

Stable equipment operation without downtime: Fountain pumps, landscape lighting, and irrigation equipment start and stop smoothly; there have been no unexplained shutdowns or malfunctions throughout the year, ensuring consistent, compliant landscape operations.

Intact enclosure integrity: Despite long-term operation in the high-humidity environment by the lake, the enclosure shows no rust, paint peeling, or deformation, maintaining excellent structural and aesthetic condition.

Elimination of electrical safety hazards: Fully enclosed insulation ensures no exposed live parts, effectively preventing risks of leakage, electric shock, and electrical fires.

Significant reduction in O&M costs: The equipment boasts an extremely low failure rate, eliminating the need for frequent repairs or part replacements and drastically reducing the O&M workload.

VI. Case Summary

The outdoor rainproof power distribution cabinet (XL-21 outdoor model) is specialized equipment designed for municipal landscapes, outdoor pumping stations, public square facilities, and outdoor industrial power loads. Distinct from standard meter boxes or indoor distribution cabinets, it offers advantages such as heavy-duty power distribution capabilities, dual-layer rain protection, corrosion and weather resistance, and a high ingress protection (IP) rating. Specifically engineered to resolve equipment failures caused by high humidity, intense sun exposure, and rain erosion, it serves as essential, standard equipment for the safe and stable operation of outdoor power distribution systems.
