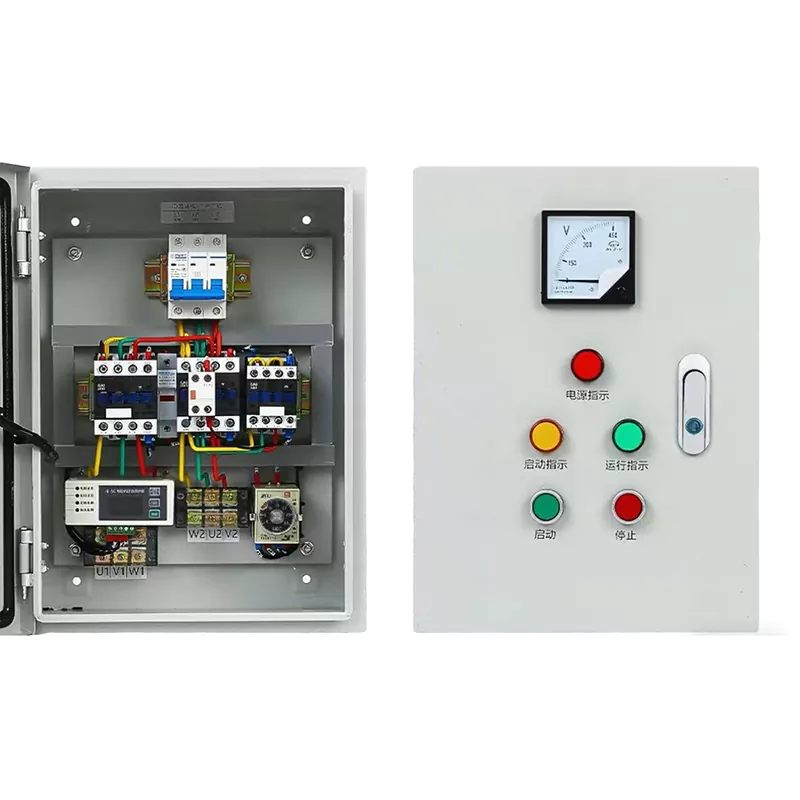

Junray Electrical Star-Delta Starter Control Cabinet is a cost-effective reduced-voltage starting solution specifically designed for high-power motors that do not require speed regulation. By utilizing star-delta starting technology, it reduces the starting current to one-third of direct-on-line starting levels, effectively eliminating grid voltage dips, mechanical shock, and equipment damage caused by excessive inrush current. With a simple and robust structure, it offers significantly higher reliability and lower failure rates compared to variable frequency drives, while costing approximately 60% less. Rated power ranges from 15kW to 315kW with IP40 protection, supporting both floor-mounted and wall-mounted installation. Suitable for high-power applications such as water pumps, fans, air compressors, and conveyor belts in industrial, municipal, and commercial settings where smooth startup and equipment protection are critical.
When many enterprises use high-power motors, they will encounter two core problems: Firstly, when the motor is directly started, the starting current is too large, which not only strongly impacts the power grid and affects the normal operation of other equipment, but also easily damages the motor, causing equipment damage and production shutdown; Secondly, to solve the problem of starting current, using a frequency conversion control cabinet is too expensive. For scenarios that do not require speed regulation but only need to reduce the starting current, the cost is extremely low, resulting in cost waste.
The Star-Delta Starter Control Cabinet is precisely designed to address this pain point. It is specifically developed for high-power motors, without the need for complex structures, it can achieve efficient voltage reduction starting, balancing practicality and economy, and perfectly meets the starting needs of various high-power motors that do not require speed regulation.
|
Parameter Name |
Specifications |
|
Rated Voltage |
AC 380V |
|
Rated Frequency |
50Hz |
|
Rated Power |
15kw~315kw (Customizable) |
|
Starting Current |
1/3 of Direct Starting |
|
Protection Level |
IP40 |
|
Installation Method |
Floor-Mounted / Wall-Mounted |
Reduce voltage during startup to protect the power grid and make the motor more durable
During startup, a star-delta connection method is adopted, which can precisely reduce the starting current to 1/3 of the direct startup current. This completely eliminates the impact of large currents on the power grid, avoids voltage fluctuations in the grid affecting other equipment, and effectively prevents the motor from being burned out due to excessive starting current, thereby extending the service life of the motor, reducing equipment replacement costs, and solving the core pain points of starting large-power motors.

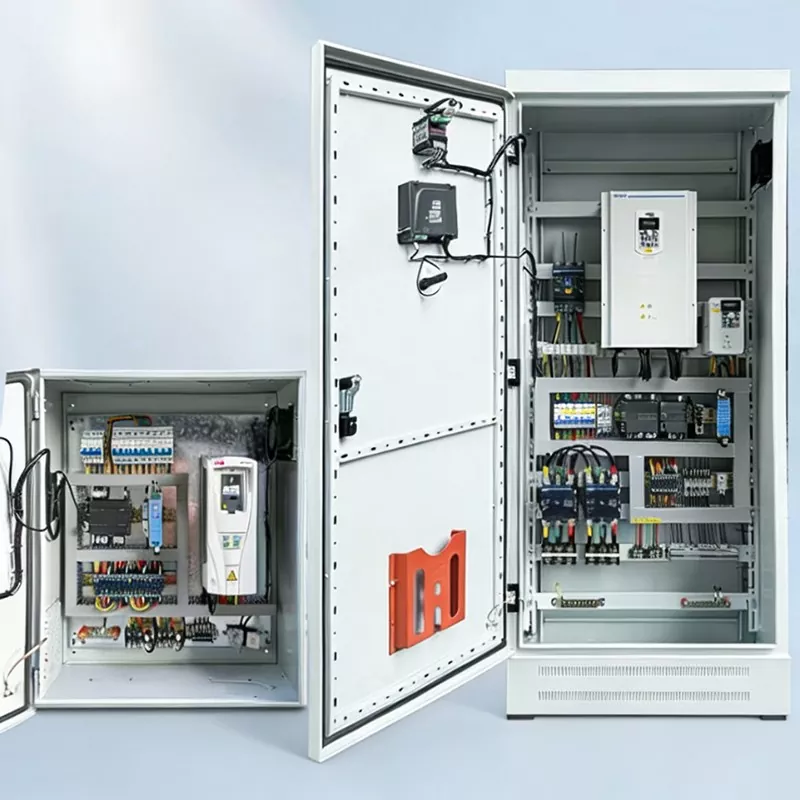

Compared to the variable frequency control cabinet, the price of the Star-Delta Starter Control Cabinet has been directly reduced by 60%. There is no need to spend a large amount of money on complex variable frequency equipment. For scenarios where speed adjustment is not required and only the starting current needs to be reduced, it can fully meet the usage requirements, significantly reducing the enterprise's procurement costs and reducing the later operation and maintenance investment. Its cost performance is far superior to similar products.
Abandoning the complex frequency conversion module, adopting a simple and practical structural design, during operation it is more stable, with extremely low failure rate. Especially suitable for scenarios with stable loads and rarely requiring equipment maintenance. No need for frequent shutdown for maintenance, reducing production interruptions caused by equipment failures and improving production efficiency.
Integrated with overload, overcurrent, overvoltage, and undervoltage protection functions, it can monitor the operating status of the motor in real time. Once the motor shows any abnormality, the equipment will automatically shut down, effectively protecting the motor and related equipment, preventing equipment damage, avoiding potential safety hazards and economic losses caused by equipment failures, and ensuring more reliable operation.
Installation is convenient and efficient.
The installation process is simple. No professional technicians are required to spend a lot of time for debugging. It can be completed quickly and is suitable for various rapidly advancing engineering projects. It reduces the installation time and enables the equipment to be put into use as soon as possible, thereby improving the project advancement efficiency.
Our Star-Delta Starter Control Cabinet pays close attention to every detail. From the core components to the wiring process, it strictly follows industry standards. With high-quality products, it eliminates concerns about procurement and ensures long-term stable operation. It is equipped with a dedicated star-triangle start module. The core components are of excellent quality and can precisely achieve voltage reduction start, effectively reducing the starting current. It also has multiple protection components to fully safeguard the safety of the motor operation and prevent any abnormal situations. The precise time relay can automatically switch between star and triangle start modes, with precise switching and reliable operation, without the need for manual operation. The dedicated heat dissipation and ventilation design quickly removes the heat generated during equipment operation, preventing components from aging due to overheating and extending the equipment's service life. The standard wiring process ensures separation of power and signal lines, with straight and vertical wiring, clear terminal markings, making later maintenance convenient, and it also complies with safety standards, enabling smooth project acceptance.
The Star-Delta Starter Control Cabinet, with its excellent performance and flexible adaptability, is widely used in various scenarios of large-power motors that do not require speed regulation, precisely matching the starting requirements of different industries.
In the large-power water pump scenario, it is suitable for various large-power water supply pumps, achieving smooth pressure reduction starting and avoiding damage to the pump due to excessive starting current;
In the large-power fan scenario, it can be used for the starting of various large-power fans, reducing the starting current and ensuring the stable operation of the fan;
In the large-power air compressor scenario, it is suitable for the starting of air compressors, taking into account both the smoothness of the start-up and equipment protection;
In the large-power conveyor belt scenario, it helps the conveyor belt to start smoothly, reducing equipment wear and improving the conveying efficiency;
At the same time, it is also compatible with other various large-power motors that do not require speed regulation, whether in industrial production, municipal engineering or various processing factories, it can be adapted.
This project involves the electrical system retrofit for fire-fighting pumps in a commercial complex. The installation includes a 30kW main fire sprinkler pump and a pressure-stabilizing pump set. Classified as a Class I emergency fire-fighting load, the system demands high standards for starting stability, minimal grid impact, and equipment reliability.
The original equipment utilized a direct-on-line (DOL) starting method. The massive inrush current at startup frequently caused voltage dips, lighting flickering, and instantaneous overloads on upstream circuit breakers. Furthermore, the starting surge risked damaging the pump's mechanical structure and shortening the motor's lifespan. To reduce starting current, ensure smooth startup, and protect both the power grid and fire-fighting equipment, the system was upgraded to Star-Delta (Y/Δ) reduced-voltage starting control cabinets, thereby meeting fire safety code requirements for low-impact starting.
Excessive starting inrush current: DOL starting current reached 6–7 times the rated current, frequently causing grid voltage fluctuations and momentary power interruptions for on-site equipment.
Mechanical shock damage: Excessive instantaneous torque during full-voltage "hard" starts subjected pump couplings and bearings to repeated stress, resulting in high failure rates, noise, and vibration.
Upstream breaker tripping: High inrush currents caused instantaneous overloads on incoming circuit breakers, leading to occasional nuisance tripping and the risk of fire-fighting equipment failing to engage reliably.
Non-compliance with fire safety acceptance standards: Direct starting is strictly prohibited for high-power fire pumps; reduced-voltage starting is mandatory. The original starting method failed to meet acceptance criteria.
Inability to handle frequent start-stop cycles: DOL starting entails high thermal losses, making it unsuitable for the frequent start-stop operations required during fire system commissioning and linkage testing.
Based on the 30kW fire pump motor specifications and fire-fighting electrical codes, dedicated Star-Delta reduced-voltage starting control cabinets were installed. These cabinets facilitate Star-configuration reduced-voltage starting followed by an automatic, time-delayed switch to Delta full-voltage operation. They feature protections against overload, phase loss, short circuits, and thermal issues, as well as local and remote linkage control capabilities. Core Equipment Specifications
Controlled Load: 30 kW three-phase fire sprinkler pump motor
Starting Method: Star (Y) reduced-voltage start → Time-delayed switch to Delta (Δ) for rated operation
Starting Current: Reduced to one-third of direct-on-line starting current; significantly minimizes grid impact
Control Components: Main contactor, star-point contactor, run contactor, time-delay relay, thermal overload protector
Switching Time: Intelligent 7-second delay for switching; optimized for smooth, no-load pump startup characteristics
Control Functions: Local manual start, remote start via fire alarm linkage, operation feedback, fault alarm
Protection Functions: Phase loss protection, overload protection, short-circuit protection, thermal overload shutdown protection
Significant Reduction in Starting Impact: Star-Delta reduced-voltage starting limits inrush current to a reasonable range, effectively eliminating voltage dips and grid fluctuations.
Extremely Smooth Startup: Soft startup eliminates harsh mechanical shocks; significantly reduces water hammer effects on pumps, motors, and piping, thereby extending equipment service life.
Robust and Reliable Protection Logic: Multiple electrical protection layers accurately detect phase loss, overload, and rotor-lock faults, triggering timely shutdowns and alarms to ensure equipment operational readiness.
Fire System Linkage Support: Integrates with the fire alarm control panel to enable automatic startup during fires, remote start/stop, and status feedback, fully complying with fire safety acceptance standards.
Mature Design & Low Failure Rate: The Star-Delta control circuit is simple, stable, easy to maintain, and highly resistant to interference—ideal for fire equipment that remains on standby for long periods but must engage instantly when needed.
Stable Grid Operation: Inrush current is drastically reduced; no voltage fluctuations or light flickering occur within the facility, and upstream breakers do not trip due to instantaneous overloads.
Smooth, Shock-Free Startup: Motor and pump start smoothly with significantly reduced vibration and noise; risks associated with pipeline water hammer are completely eliminated.
Precise and Reliable Protection: Multiple test runs and linkage tests performed successfully with no false alarms or unintended operations; 100% equipment operational integrity.
Successful Fire Safety Acceptance: Startup method, control logic, and linkage functions fully comply with electrical design codes for fire safety systems, passing final acceptance inspection.
Reduced O&M Costs: Equipment failure rates have dropped significantly; eliminates the need for frequent repairs or mechanical part replacements, ensuring stable and reliable long-term operation. Case Summary
The Star-Delta reduced-voltage starting control cabinet represents the most widely used and mature starting solution for high-power equipment—such as water pumps, fans, industrial motors, and fire-fighting systems—ranging from 30 kW to 132 kW. Characterized by a simple structure, high stability, low failure rate, and excellent cost-effectiveness, it effectively mitigates motor starting surges and protects both the power grid and mechanical equipment. Compliant with fire safety and industrial electrical standards, it serves as standard control equipment for civil buildings, municipal projects, and industrial power systems.
