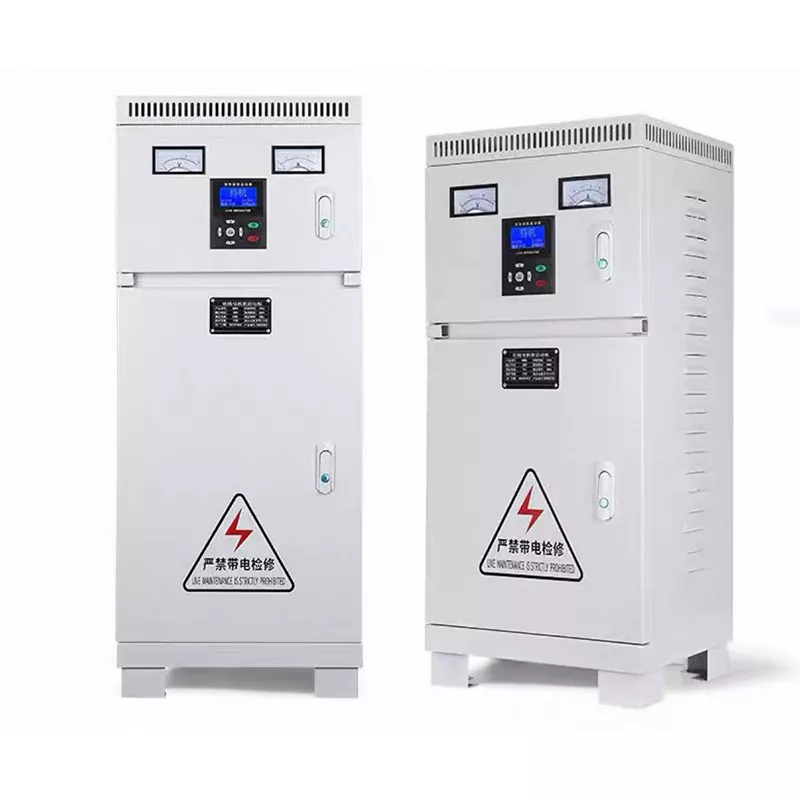

Machine-side Control Box

When many enterprises use large-power and heavy-load motors such as crushers and ball mills, they often encounter a dilemma: the star-delta starting torque is insufficient, making it impossible to start the heavy-load equipment and unable to achieve normal startup; although the frequency control cabinet can meet the requirements, it is expensive and, for scenarios that do not require speed adjustment but only heavy-load startup, it is undoubtedly a waste of cost. The Machine-side Control Box has emerged, precisely matching the starting requirements of large-power heavy-load motors, and taking into account both starting performance and cost control.

Technical Specifications

What are the key selling points?

As an exclusive starting device for ultra-high power heavy-duty motors, the Machine-side Control Box offers several advantages that directly address the practical pain points of actual usage:

Self-coupled voltage reduction, halving the impact of grid surges: Equipped with high-quality self-coupling transformers, it can precisely reduce the starting current to 1/4 of the direct start, which is even lower than 1/3 of the star-delta start, significantly reducing the impact on the grid during startup and avoiding interference with the normal operation of other equipment. It is suitable for the long-term stable startup of various ultra-high power motors.

High torque starting, easy to start heavy loads: The starting torque can reach 60% of the direct start, far exceeding the torque of the star-delta start. For heavy-load equipment such as crushers and ball mills, it completely solves the problem of the star-delta start being unable to move, ensuring smooth startup and sufficient power, and ensuring that the equipment can be quickly put into operation.

Wide power adaptation, broader coverage: The rated power can be adapted from 15kW to 800kW, and customization is supported. It is larger than the power range of the star-delta start control cabinet, perfectly covering various ultra-high power heavy-duty motors. Whether it is small heavy-duty equipment or large industrial units, it can be precisely matched.

Multiple protections, stable operation and more worry-free: Integrated with multiple protection functions such as overload, overcurrent, overvoltage, undervoltage, and overtemperature, it can monitor the operating status of the equipment in real time. Once an abnormality occurs, it automatically stops the machine and protects the motor and self-coupling transformer, reducing the risk of equipment damage and lowering the cost of later maintenance. The operation is more reliable.

A cost-effective choice with a 50% price reduction: Compared to frequency conversion control cabinets, the price is directly reduced by 50%. There is no need to spend a large amount of money on redundant speed regulation functions. It is only optimized for heavy-load starting requirements, allowing purchasers to obtain a more suitable starting solution at a lower cost and significantly save the procurement budget.

Structural Design Advantages

Junray Electrical has been deeply engaged in the research and production of starting equipment. It adheres to delivering professional quality to buyers. Every detail of the Machine-side Control Box has been meticulously refined, balancing practicality and durability. It is equipped with a high-quality auto-coupling transformer, and the core components are of excellent quality, ensuring stable voltage reduction starting and sufficient torque; it is also equipped with an accurate time relay, which can automatically switch the starting mode without the need for manual intervention, ensuring accuracy and reliability; a dedicated heat dissipation channel design quickly removes the heat generated by the equipment operation, preventing component aging due to overheating; the standardized wiring process separates the power and control circuits, is horizontal and vertical, facilitating maintenance, and complies with electrical safety standards.

What are the practical application scenarios?

Thanks to its excellent startup performance and wide adaptability, the Machine-side Control Box has become the standard startup equipment for various ultra-high-power heavy-duty motors, precisely adapting to multiple industrial scenarios. In the crushing machine scenario, it is suitable for heavy-load startup of ultra-high-power crushing machines, providing sufficient power and smooth startup; in the ball mill scenario, it can easily drive the heavy-load startup of the ball mill, solving the problem of insufficient power in star-triangle startup; in the high-power water pump scenario, it is suitable for heavy-load startup of ultra-high-power water pumps, ensuring the stable operation of water supply and drainage systems; in the high-power fan scenario, it is suitable for startup of ultra-high-power fans, reducing grid impact and ensuring smooth operation of the fans, fully meeting the industrial heavy-load startup requirements.

Immediate Purchase

Select a compatible, reliable and cost-effective heavy-duty motor starting device to be the key to reducing costs and improving efficiency. The Machine-side Control Box is developed and produced by Junray Electrical. It ensures quality, offers prompt delivery and has excellent after-sales service, perfectly addressing the pain points of difficult heavy-duty motor starting and high costs. Don't hesitate. Contact us immediately to secure the cost-effective Low-Voltage Distribution Box, making the starting of super large power heavy-duty motors smoother and the operation more reliable.

Retrofit Project Overview

I. Project Background

This project involves the power distribution system retrofit for an industrial park's wastewater treatment station. The station is equipped with multiple high-power (132 kW) main sewage pumps, which are classified as high-inertia, heavy-load equipment. The original motors utilized a direct-on-line (DOL) starting method, resulting in massive inrush currents. Each start caused a sudden drop in the plant's busbar voltage, flickering lights, and the stalling or restarting of other equipment; it frequently triggered instantaneous overload trips on the upstream main circuit breaker and caused contactor ablation or welding. Prolonged use of DOL starting led to severe motor winding overheating and reduced equipment lifespan, while grid fluctuations interfered with nearby precision manufacturing equipment, seriously compromising production stability and electrical safety.

To resolve the issues of high starting inrush current, severe voltage drops, and equipment vulnerability, all units were replaced with auto-transformer reduced-voltage starting control cabinets. This approach ensures the smooth startup of heavy-load motors by limiting voltage and current, thereby avoiding the drawbacks of DOL starting and ensuring the safe, stable operation of both the power grid and the equipment.

II. Issues Prior to Retrofit

Massive starting inrush current and severe voltage drop: Direct starting of high-power pumps caused instantaneous currents to reach 5–7 times the rated value, leading to significant busbar voltage dips and interfering with electrical equipment throughout the plant.

Frequent upstream breaker tripping: Starting surge currents triggered the overload protection in the main distribution cabinet; starting a single pump could cause localized power outages and production interruptions across the facility.

High risk of contactor and motor burnout: Frequent exposure to high-current surges caused main contactor contacts to ablate or weld together, while motor windings suffered from high-temperature aging, resulting in an extremely high equipment failure rate.

Inability to start/stop frequently; operational limitations: The DOL method caused excessive heat accumulation, making it impossible to meet the operational requirements of starting and stopping pumps in response to fluctuating wastewater loads (peak and off-peak).

Poor power quality and interference with precision equipment: Significant voltage fluctuations caused errors and data drift in nearby automatic control instruments and variable-frequency drive (VFD) equipment, compromising production precision.

III. Equipment Configuration Plan

To address the startup requirements of 132kW high-power, heavy-load water pumps—while balancing economic viability and operational stability—the site is equipped with standardized autotransformer reduced-voltage starting control cabinets. These utilize a dual-tap (80% and 65%) reduced-voltage starting mode, automatically switching between reduced-voltage and full-voltage operation via time-delay relays to ensure a smooth, soft start for the motor.

Core Equipment Specifications

Model: XJ01 Series Autotransformer Reduced-Voltage Starting Control Cabinet

Compatible Motor: 380V, 132kW high-power three-phase asynchronous water pump motor

Starting Method: Autotransformer reduced-voltage, current-limiting start; selectable dual-voltage taps (65%, 80%)

Starting Characteristics: Starting current limited to 2–3 times the rated current, significantly reducing grid impact

Control Logic: Reduced-voltage start → time-delayed stabilization → automatic switch to full-voltage operation; fully automatic, unattended switching

Protection Features: Overload, phase-loss, short-circuit, delayed-switching, and undervoltage protection

Core Components: High-capacity autotransformer, main/standby switching contactors, intelligent time controller, thermal overload relay

Applications: Heavy-load equipment such as high-power water pumps, fans, and air compressors; offers superior cost-performance compared to soft starters or variable frequency drives (VFDs)

IV. Application Highlights

Significantly reduces starting current and stabilizes grid voltage: Uses autotransformer-based reduced-voltage current limiting to effectively eliminate the 5–7x surge current associated with direct-on-line starting, preventing significant busbar voltage drops or flickering.

Ensures smooth start/stop and protects motor equipment: Soft starting eliminates shocks and vibrations; significantly lowers motor temperature rise and slows winding aging, thereby extending equipment service life.

Prevents upstream breaker tripping and ensures continuous production: Controllable starting current eliminates nuisance tripping of upstream protection devices, solving the problem of localized power outages caused by starting individual pieces of equipment.

Robust structure and excellent cost-performance: Compared to soft starters or VFDs, this system features a simple structure, low failure rate, and economical cost, while offering high resilience in harsh industrial operating conditions. Fully automatic operation and easy maintenance: Features automatic time-delayed switching to full-voltage operation without manual intervention; simplifies future servicing, utilizes standard interchangeable parts, and ensures low maintenance costs.

V. Operational Results After Retrofitting

Controllable starting current and stable grid quality: Motor starts smoothly without surges or voltage flicker; plant-wide equipment operates stably with no interference-related error alerts.

Elimination of upstream breaker tripping: Multiple start-stop tests showed no accidental tripping of upstream switches, completely resolving issues with power outages and production interruptions during startup.

Zero failure rate for motors and contactors: Normal temperature rise during startup; no contact erosion or sticking; no overheating or aging of motor windings; 100% equipment integrity.

Suitable for frequent start-stop operations: Meets the requirements for cycling starts and stops based on fluctuating day-night loads at the wastewater treatment station, significantly enhancing operational adaptability.

Passed electrical acceptance inspection on the first attempt: Startup logic, protection functions, and power distribution standards all met requirements, successfully passing the industrial power distribution standardization inspection.

VI. Case Summary

The autotransformer reduced-voltage starting control cabinet is the most mainstream and cost-effective starting solution for high-power industrial fans, pumps, and air compressors. Core principle: Uses an autotransformer to step down voltage and limit current, thereby reducing the impact of starting current on the power grid and equipment. It differs from direct-on-line starting (high current, damages equipment), soft starters (electronics prone to failure), and variable frequency drives (high cost). With its durable structure, high stability, and moderate cost, autotransformer starting is the preferred choice for technical upgrades in older factories and power distribution retrofits for high-power, heavy-load equipment, effectively balancing grid safety, equipment lifespan, and project cost-efficiency.
