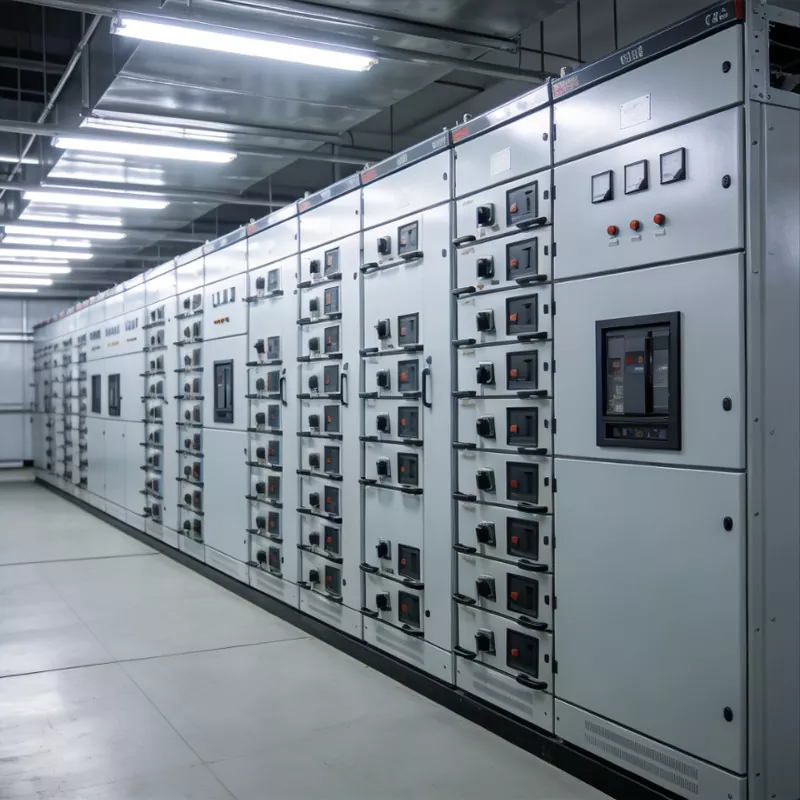

GCS Low-Voltage Draw-out Distribution Cabinet

The ordinary fixed-type distribution cabinet requires the entire circuit to be powered off during maintenance. However, for scenarios such as hospitals and data centers where power outages are not allowed, this is simply not feasible. The GCS Low-Voltage Draw-out Distribution Cabinet, specifically designed for high-end distribution scenarios, adopts a drawer-type unit structure. Each circuit is an independent drawer. During maintenance, only the faulty drawer needs to be pulled out, and the other circuits remain unaffected, without the need for a power outage. This perfectly solves the problem of power outage during maintenance and is the standard equipment for scenarios such as hospitals, data centers, and high-end commercial buildings where power outages are not allowed.

Core advantages

Drawer-type uninterrupted maintenance: Each circuit is an independent drawer unit. If a circuit fails, only the corresponding drawer needs to be pulled out for maintenance. The other circuits can continue to operate normally without stopping the entire power distribution system. This is perfectly suitable for scenarios where power outages are not allowed, such as hospitals and data centers.

Modular quick replacement: The drawer units are standardized. If a drawer is broken, simply replace it with a new one. There is no need to dismantle the wiring or components. It can be replaced in just a few minutes. Compared to ordinary fixed-type distribution cabinets, the maintenance efficiency is 10 times higher, significantly reducing downtime.

Seamless cabinet connection and flexible expansion: Multiple cabinets can be seamlessly connected and combined. According to your power distribution plan, you can flexibly expand circuits and capacity, forming a complete low-voltage integrated power distribution system. The layout is neat, and the space in the power distribution room is saved.

High current stable carrying capacity: The GCS Low-Voltage Draw-out Distribution Cabinet supports a rated current of up to 4000A. It can carry large loads for large data centers and hospitals. The large-sized copper busbars have a large current-carrying capacity, low temperature rise, and ensure long-term stable operation of large currents.

Technical Specifications

GCS Low-Voltage Draw-out Distribution Cabinet Detailed Display

1. Independent Draw-out Unit Each circuit has an independent draw-out unit, which does not interfere with each other. Maintenance does not require power outage.

2. Mechanical Interlock Protection Prevents incorrect operation and prevents pulling out the draw-out unit with load. Safe and reliable.

3. Large-sized Copper Busbars Thicker copper busbars with sufficient current-carrying capacity, complete insulation protection, and stable operation under high current.

4. Standard Accessory Slots Reserved standard access and exit holes, suitable for different engineering wiring requirements.

Applicable Scenarios for GCS Low-Voltage Draw-out Distribution Cabinet

Hospitals: Power distribution in operating rooms and ICUs of hospitals, scenarios without power outage

Data Centers: Power distribution in IDC data centers and server clusters, power-off maintenance

High-end Commercial: Core power distribution in high-end shopping malls, office buildings, and hotels

Large Factories: Core production line power distribution in large factories, production lines without power outage

Infrastructure Projects: Core low-voltage power distribution in airports, subways, and rail transit systems
