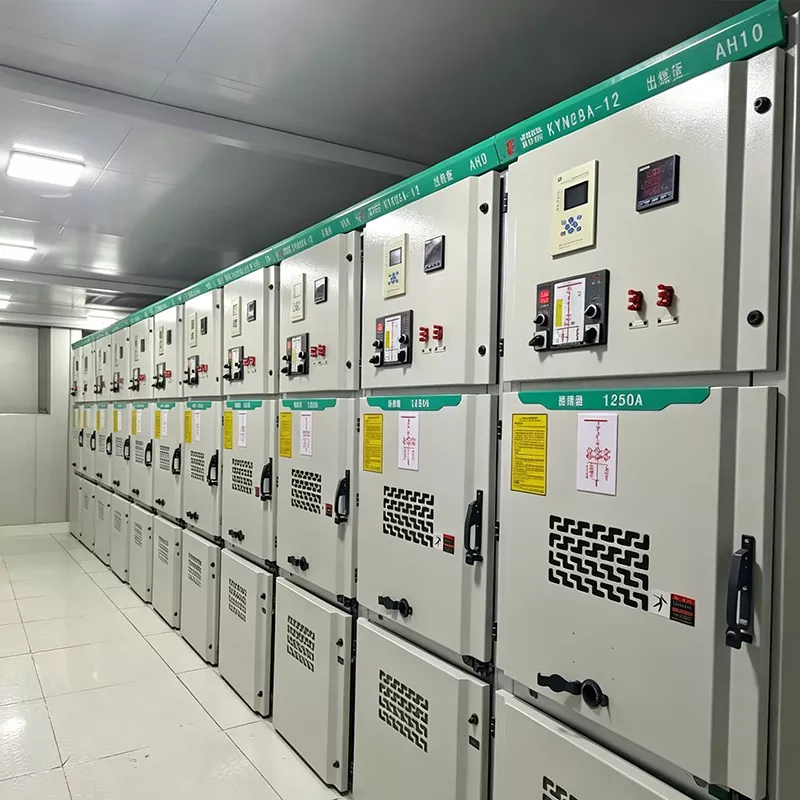

KYN28-12 AC Metal-Enclosed Switchgear

Our key advantages of KYN28-12 AC Metal-Enclosed Switchgear

"Five-Prevention" Interlocking for Ultimate Safety: Our dedicated "Five-Prevention" interlocking protection system serves to completely prevent operational errors—specifically, preventing the accidental opening or closing of circuit breakers, operating disconnectors under load, applying ground wires to live circuits, closing circuit breakers while ground wires are attached, and accidentally entering live compartments. This system thoroughly eliminates the risk of high-voltage operational errors, thereby safeguarding the safety of operating personnel and preventing faults caused by human error.

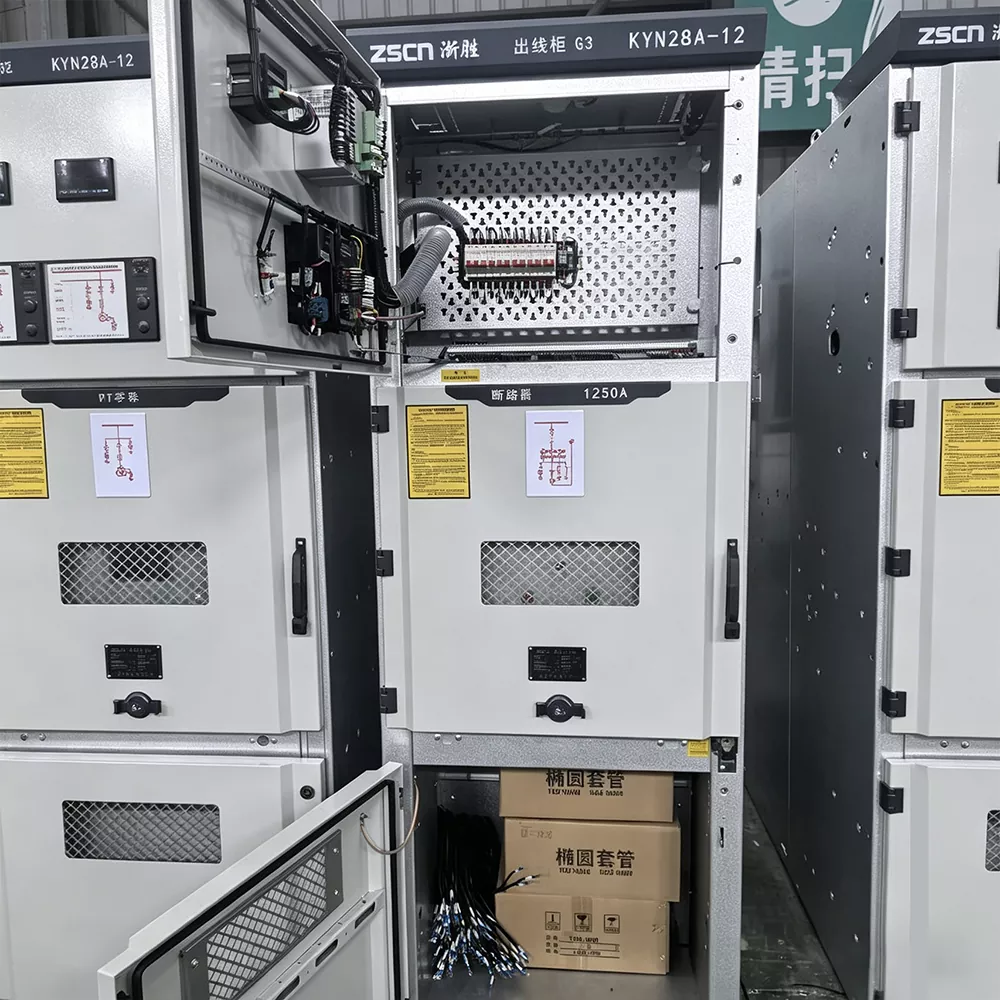

Withdrawable Trolley Design for Maintenance Without Power Interruption: The circuit breaker utilizes a withdrawable trolley structure. If a fault occurs in a specific circuit, the corresponding trolley can simply be withdrawn for maintenance; the remaining high-voltage circuits remain completely unaffected, eliminating the need to shut down the entire high-voltage system. This significantly reduces downtime and is perfectly suited for high-voltage environments where continuous power supply is critical.

IP4X High Protection Rating: With an IP4X protection rating, the switchgear effectively blocks dust and moisture, thereby protecting the internal high-voltage components. This ensures stable and reliable operation, even in environments characterized by high humidity or high dust levels.

Technical Parameters

Applicable Scenarios

Substations: High-voltage outgoing and incoming feeder cabinets in 10kV substations.

Large-scale Industrial Plants: High-voltage power distribution, including 10kV incoming and outgoing feeders.

Large-scale Data Centers: High-voltage power distribution for massive data centers and mission-critical environments where power outages are strictly prohibited.

Rail Transit: High-voltage power distribution for subway and high-speed rail systems.

Infrastructure Projects: High-voltage power distribution for airports and hospitals—scenarios demanding exceptional reliability.

Quality Assurance

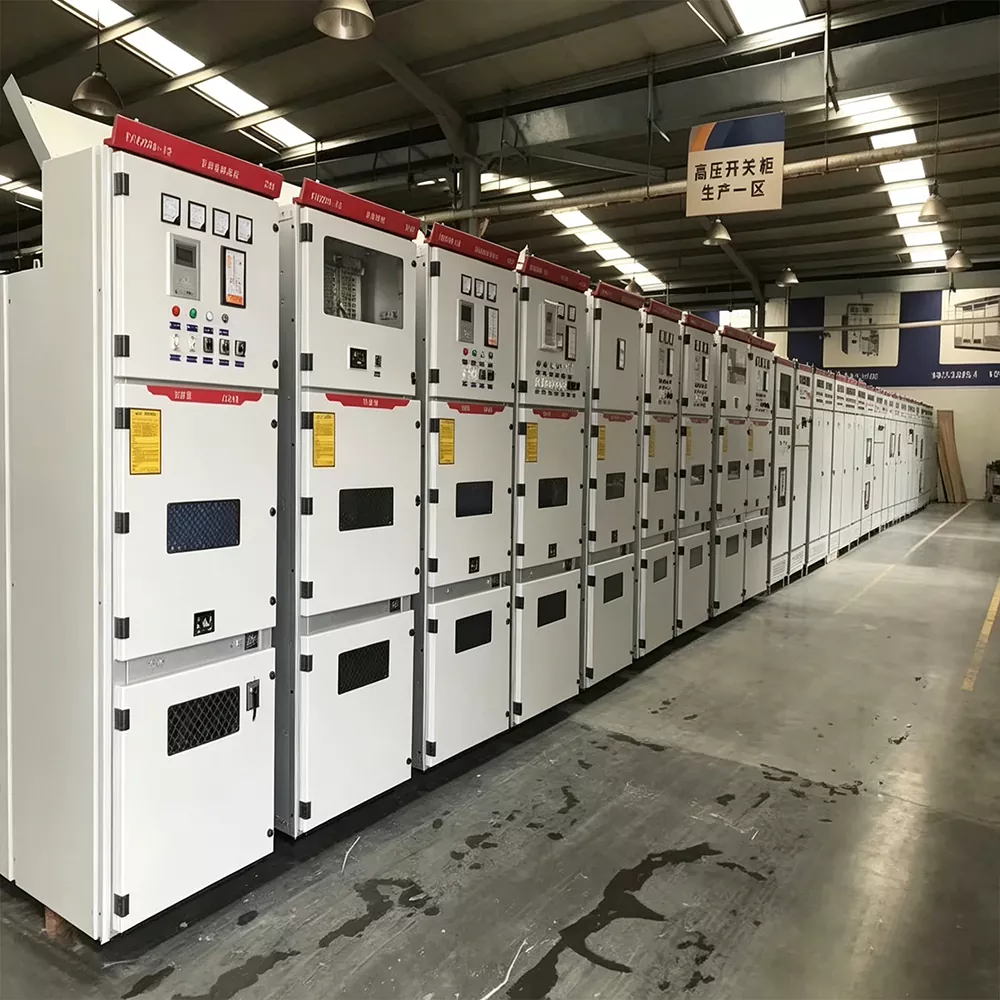

Junray Electrical strictly adheres to the national standards for KYN28-12 AC Metal-Enclosed Switchgear during production. Each cabinet undergoes rigorous structural inspections, withstand voltage tests, interlocking tests, and protection tests to ensure stable and safe operation. We offer comprehensive customization options for both individual units and specific functionalities; based on your high-voltage power distribution scheme, we can tailor-make exclusive cabinets that integrate seamlessly with your project requirements—featuring mature craftsmanship and exceptional durability.

Kenya 10kV Power Distribution Project

Project Overview

·Project Name: 10kV Power Distribution Project for a Chinese-invested Industrial Park in Nairobi

·Location: Kenya

·Completion Date: January 2026

·Project Scope: 10kV distribution substation for the industrial park, featuring six 1600kVA transformers

Products Used

·Model: KYN28-12 High-Voltage Switchgear

·Quantity: 18 units

·Configuration: VS1 circuit breakers + XJ (Xuji) microprocessor-based protection relays

·Certification: CE certified; compliant with IEC standards

·Special Requirements: Suitable for high-temperature African environments; corrosion-resistant; capable of handling significant grid fluctuations

Solution

To address the specific characteristics of the African market in Kenya, we provided a customized export solution:

1. Environmental Adaptability Design

·Switchgear enclosures feature an anti-corrosion powder coating process with a dual-layer finish, suitable for hot and humid coastal environments

·All internal metal components are galvanized to prevent rust and corrosion

·Components are selected for wide operating temperature ranges to withstand Africa's high-temperature climate

·Enhanced ventilation and heat dissipation design to minimize temperature rise within the cabinet

2. Grid Stability Adaptation

·Equipped with wide-range protection devices to handle Kenya's grid voltage fluctuations and frequency instability

·Incoming feeder panels feature high-performance surge protection devices (SPDs) to guard against lightning strikes and overvoltage

·Protection settings are flexibly adjustable on-site to match local grid conditions

·Equipped with an Automatic Transfer Switch (ATS) system to enhance power supply reliability

3. Export Service Support

·All products are CE certified and come with comprehensive English technical documentation

·Packaged in fumigation-free wooden crates designed for export, with moisture-proof treatment for sea freight

·Chinese engineers dispatched to the site to supervise installation and commissioning

·English-language operation training provided for local O&M personnel

·3-year warranty and 24-hour remote technical support

Customer Feedback

"We have done many projects in Africa, and Junray's KYN28 switchgears are among the best we have used. They adapted well to the local grid conditions and high temperature environment. Their engineer came to site for commissioning and training, which was very helpful. The quality is solid, the price is competitive, and the service is excellent. We will definitely continue to cooperate."

— Project Manager Zhang, Chinese engineering company
